ADG506ATQ/883B

ADI (Analog Devices, Inc.)

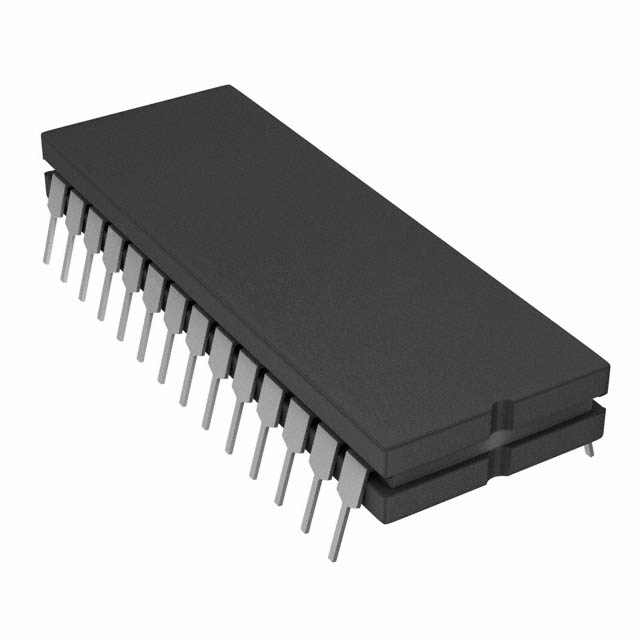

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADG506ATQ/883B
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC MULTIPLEXER 16CH 28CDIP
Datasheets:	ADG506ATQ/883B.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	2346 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2346 pcs

Reference Price (In US Dollars)

1 pcs: $16.068

12 pcs: $14.992

108 pcs: $13.017

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$16.068

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADG506ATQ/883B

Part Number	ADG506ATQ/883B	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC MULTIPLEXER 16CH 28CDIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	2346 pcs	Data sheet	ADG506ATQ/883B.pdf
Voltage - Supply, Single (V+)	10.8 V ~ 16.5 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	300ns, 300ns	Switch Circuit	-
Supplier Device Package	28-CDIP	Series	-
Packaging	Tube	Package / Case	28-CDIP (0.600", 15.24mm)
Operating Temperature	-55°C ~ 125°C	On-State Resistance (Max)	300 Ohm
Number of Circuits	1	Multiplexer/Demultiplexer Circuit	16:1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Detailed Description	1 Circuit IC Switch 16:1 300 Ohm 28-CDIP	Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-	Charge Injection	4pC
Channel-to-Channel Matching (ΔRon)	15 Ohm (Typ)	Channel Capacitance (CS(off), CD(off))	5pF, 44pF
Base Part Number	ADG506	-3db Bandwidth	-
