0702462602

Affinity Medical Technologies - a Molex company

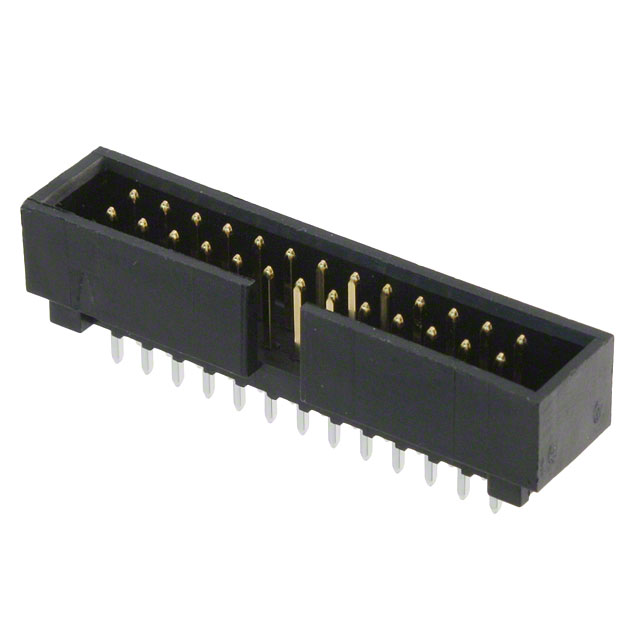

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0702462602
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 26POS .100 VERT GOLD
Datasheets:	0702462602.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21447 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21447 pcs

Reference Price (In US Dollars)

1 pcs: $1.433

10 pcs: $1.375

100 pcs: $1.146

500 pcs: $0.974

1000 pcs: $0.831

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.433

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0702462602

Part Number	0702462602	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 26POS .100 VERT GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21447 pcs	Data sheet	0702462602.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	C-Grid 70246	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.500" (12.70mm)	Other Names	070246-2602 0702462602-ND 70246-2602 70246-2602-ND 702462602 WM9223
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.365" (9.27mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 26 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.135" (3.43mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	74.8µin (1.90µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
