SH150C-3.00-77

AlfaMag Electronics (AMGIS)

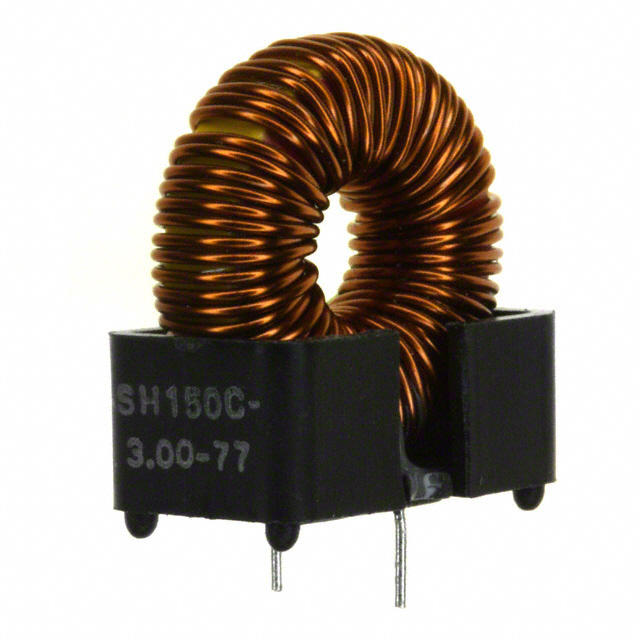

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SH150C-3.00-77
Manufacturer/Brand:	AlfaMag Electronics (AMGIS)
Product description	FIXED IND 77UH 3A 80 MOHM TH
Datasheets:	SH150C-3.00-77.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11561 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11561 pcs

Reference Price (In US Dollars)

1 pcs: $2.508

10 pcs: $2.279

200 pcs: $1.55

600 pcs: $1.413

1000 pcs: $1.322

2600 pcs: $1.276

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.508

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SH150C-3.00-77

Part Number	SH150C-3.00-77	Manufacturer	AlfaMag Electronics (AMGIS)
Description	FIXED IND 77UH 3A 80 MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11561 pcs	Data sheet	SH150C-3.00-77.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.827" L x 0.449" W (21.00mm x 11.40mm)
Shielding	Unshielded	Series	SH150
Ratings	-	Q @ Freq	-
Packaging	Tray	Package / Case	Radial
Other Names	SH150C30077 TE2214	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron Powder	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	10kHz	Inductance	77µH
Height - Seated (Max)	0.937" (23.80mm)	Frequency - Self Resonant	-
Detailed Description	77µH Unshielded Toroidal Inductor 3A 80 mOhm Radial	DC Resistance (DCR)	80 mOhm
Current Rating	3A	Current - Saturation	-
