A10503RNZQ

C&KC&K

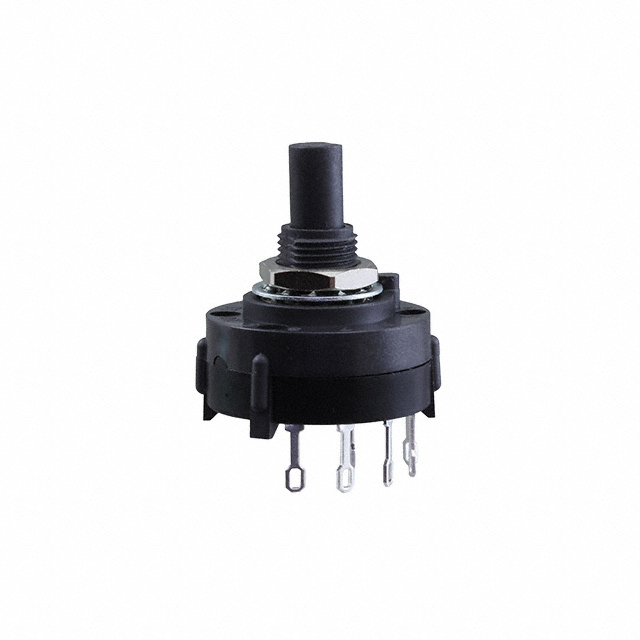

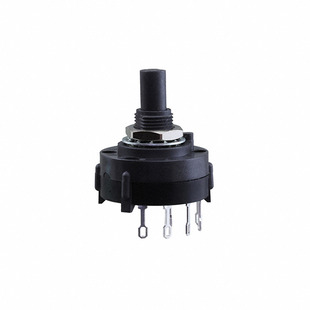

A10503RNZQ Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: A10503RNZQ
Manufacturer/Brand: C&K
Product description SWITCH ROTARY 5POS 2.5A 125V
Datasheets: A10503RNZQ.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 14520 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 14520 pcs
Reference Price (In US Dollars)
1 pcs
$2.195
10 pcs
$1.813
25 pcs
$1.79
50 pcs
$1.646
100 pcs
$1.575
250 pcs
$1.408
500 pcs
$1.384
1000 pcs
$1.36
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.195

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of A10503RNZQ

Part Number A10503RNZQ Manufacturer C&K
Description SWITCH ROTARY 5POS 2.5A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 14520 pcs Data sheet A10503RNZQ.pdf
Voltage Rating - DC 125V Voltage Rating - AC 125V
Termination Style Solder Lug Series A
Panel Cutout Dimensions Circular - 9.80mm Dia Other Names A10503RNZQ-ND
CKN11780
Q5682876
Operating Force - Number of Positions 5
Number of Poles per Deck 1 Number of Decks 1
Mounting Type Panel Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Index Stops Fixed
Features - Detailed Description Rotary Switch 5 Position SP5T 2.5A (AC), 350mA (DC) 125VAC Panel Mount
Depth Behind Panel 20.83mm Current Rating 2.5A (AC), 350mA (DC)
Contact Timing Non-Shorting (BBM) Contact Material Silver (Ag)
Contact Finish Silver Circuit per Deck SP5T
Angle of Throw 30° Actuator Type Flatted (6.35mm Dia)
Actuator Length 9.53mm
