MB00S2NZQD

C&K

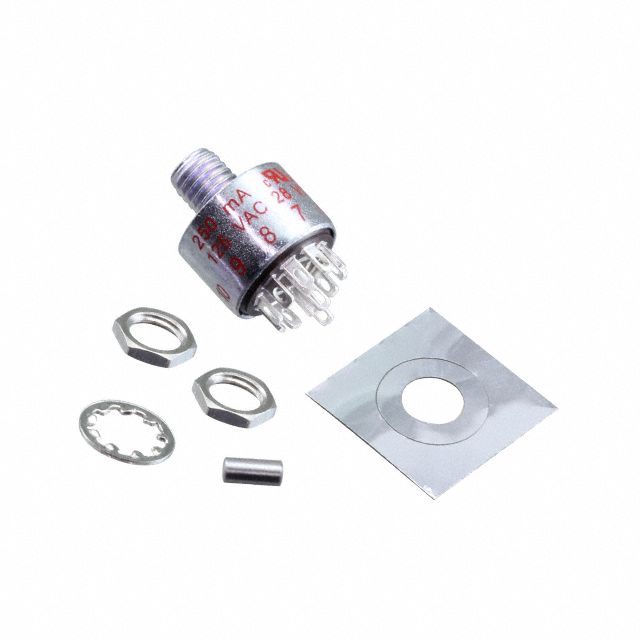

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MB00S2NZQD
Manufacturer/Brand:	C&K
Product description	SWITCH ROTARY 5POS 250MA 125V
Datasheets:	MB00S2NZQD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4586 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4586 pcs

Reference Price (In US Dollars)

1 pcs: $7.063

10 pcs: $6.586

25 pcs: $6.49

50 pcs: $6.395

100 pcs: $5.631

250 pcs: $5.44

500 pcs: $5.345

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$7.063

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MB00S2NZQD

Part Number	MB00S2NZQD	Manufacturer	C&K
Description	SWITCH ROTARY 5POS 250MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4586 pcs	Data sheet	MB00S2NZQD.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Series	M
Panel Cutout Dimensions	Circular - 6.60mm Dia	Other Names	CKN11889 MB00S2NZQD-ND
Operating Force	2.880 ~ 5.041gfm	Number of Positions	5
Number of Poles per Deck	2	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Continuous
Features	-	Detailed Description	Rotary Switch 5 Position DP5T 250mA (AC/DC) 125VAC Panel Mount
Depth Behind Panel	14.86mm	Current Rating	250mA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Copper Alloy
Contact Finish	Silver	Circuit per Deck	DP5T
Angle of Throw	36°	Actuator Type	Screwdriver Slot
Actuator Length	Flush
