MB04L1NCGD

C&K

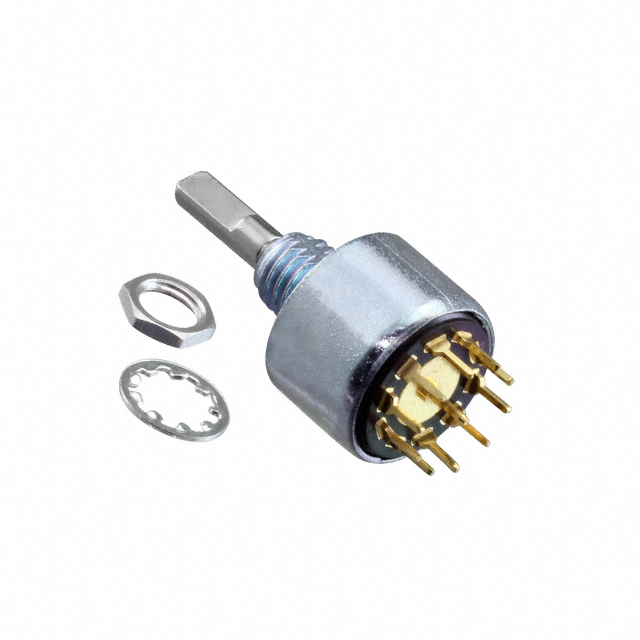

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MB04L1NCGD
Manufacturer/Brand:	C&K
Product description	SWITCH ROTARY 4POS 250MA 125V
Datasheets:	MB04L1NCGD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5815 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5815 pcs

Reference Price (In US Dollars)

1 pcs: $6.484

10 pcs: $6.05

25 pcs: $5.964

50 pcs: $5.877

100 pcs: $5.186

250 pcs: $5.013

500 pcs: $4.927

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$6.484

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MB04L1NCGD

Part Number	MB04L1NCGD	Manufacturer	C&K
Description	SWITCH ROTARY 4POS 250MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5815 pcs	Data sheet	MB04L1NCGD.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	PC Pin	Series	M
Panel Cutout Dimensions	Circular - 6.60mm Dia	Other Names	CKN11890 MB04L1NCGD-ND
Operating Force	2.880 ~ 5.041gfm	Number of Positions	4
Number of Poles per Deck	2	Number of Decks	1
Mounting Type	Panel Mount, Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Fixed
Features	-	Detailed Description	Rotary Switch 4 Position DP4T 250mA (AC/DC) 125VAC Panel Mount, Through Hole
Depth Behind Panel	10.42mm	Current Rating	250mA (AC/DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Copper Alloy
Contact Finish	Gold	Circuit per Deck	DP4T
Angle of Throw	36°	Actuator Type	Flatted (3.17mm Dia)
Actuator Length	10.16mm
