R1966DBLKBLKHR

E-SwitchE-Switch

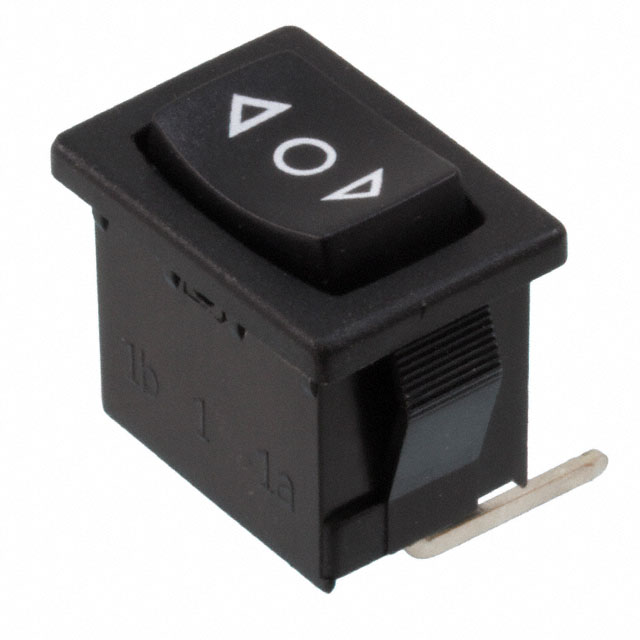

R1966DBLKBLKHR Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: R1966DBLKBLKHR
Manufacturer/Brand: E-Switch
Product description SWITCH ROCKER SPDT 15A 125V
Datasheets: 1.R1966DBLKBLKHR.pdf2.R1966DBLKBLKHR.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 39563 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 39563 pcs
Reference Price (In US Dollars)
1 pcs
$0.832
10 pcs
$0.797
25 pcs
$0.761
50 pcs
$0.725
100 pcs
$0.689
250 pcs
$0.671
500 pcs
$0.634
1000 pcs
$0.562
5000 pcs
$0.544
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.832

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of R1966DBLKBLKHR

Part Number R1966DBLKBLKHR Manufacturer E-Switch
Description SWITCH ROCKER SPDT 15A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 39563 pcs Data sheet 1.R1966DBLKBLKHR.pdf2.R1966DBLKBLKHR.pdf
Voltage Rating - AC 125V Termination Style PC Pin
Switch Function On-Off-On Series R1966
Panel Cutout Dimensions Rectangular - 19.40mm x 13.00mm Packaging Bulk
Operating Temperature -30°C ~ 65°C Mounting Type Panel Mount, Snap-In, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 30,000 Cycles
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection -
Illumination Voltage (Nominal) - Illumination Type, Color -
Features - Electrical Life 10,000 Cycles
Detailed Description Rocker Switch SPDT 15A (AC) 125V Panel Mount, Snap-In, Right Angle Current Rating 15A (AC)
Color - Actuator/Cap Black Circuit SPDT
Actuator Type Concave (Curved) Actuator Marking Triangular Arrows with O
