ECS-MPI2520R1-2R2-R

ECS Inc. InternationalECS Inc. International

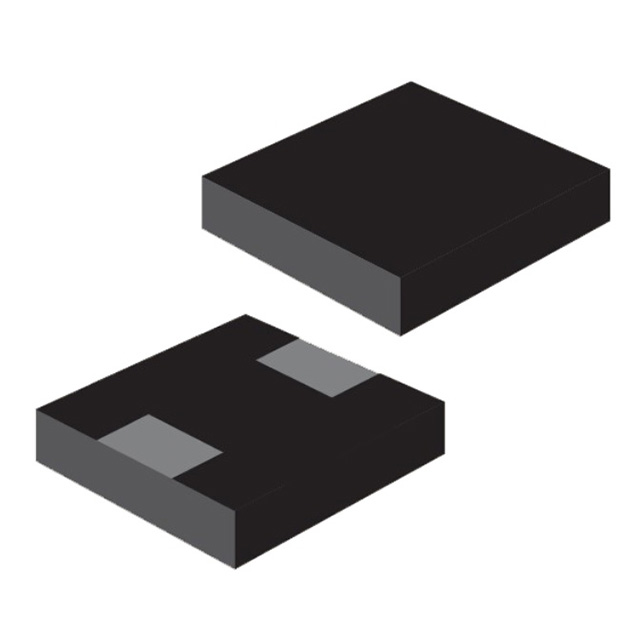

ECS-MPI2520R1-2R2-R Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ECS-MPI2520R1-2R2-R
Manufacturer/Brand: ECS Inc. International
Product description FIXED IND 2.2UH 2.3A 90 MOHM SMD
Datasheets: ECS-MPI2520R1-2R2-R.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 227280 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 227280 pcs
Reference Price (In US Dollars)
3000 pcs
$0.164
6000 pcs
$0.159
15000 pcs
$0.154
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.164

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ECS-MPI2520R1-2R2-R

Part Number ECS-MPI2520R1-2R2-R Manufacturer ECS Inc. International
Description FIXED IND 2.2UH 2.3A 90 MOHM SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 227280 pcs Data sheet ECS-MPI2520R1-2R2-R.pdf
Type Molded Tolerance ±20%
Supplier Device Package 1008 (2520 Metric) Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Shielding Shielded Series ECS-MPI2520
Ratings - Q @ Freq -
Packaging Tape & Reel (TR) Package / Case 1008 (2520 Metric)
Other Names XC2417TR Operating Temperature -40°C ~ 105°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Core - Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance Frequency - Test 1MHz Inductance 2.2µH
Height - Seated (Max) 0.047" (1.20mm) Frequency - Self Resonant -
Features - Detailed Description 2.2µH Shielded Molded Inductor 2.3A 90 mOhm Max 1008 (2520 Metric)
DC Resistance (DCR) 90 mOhm Max Current Rating 2.3A
Current - Saturation 2.7A
