VS-40TPS16-M3

Electro-Films (EFI) / VishayElectro-Films (EFI) / Vishay

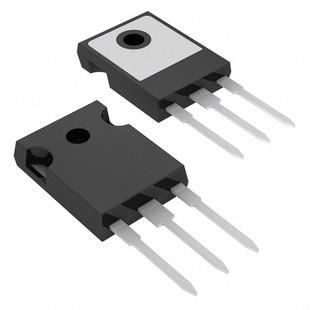

VS-40TPS16-M3 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: VS-40TPS16-M3
Manufacturer/Brand: Electro-Films (EFI) / Vishay
Product description SCR 1600V 55A TO-247
Datasheets: VS-40TPS16-M3.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 9914 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 9914 pcs
Reference Price (In US Dollars)
1 pcs
$3.688
10 pcs
$3.331
25 pcs
$3.176
100 pcs
$2.758
250 pcs
$2.634
500 pcs
$2.402
1000 pcs
$2.092
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$3.688

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of VS-40TPS16-M3

Part Number VS-40TPS16-M3 Manufacturer Electro-Films (EFI) / Vishay
Description SCR 1600V 55A TO-247 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 9914 pcs Data sheet VS-40TPS16-M3.pdf
Voltage - On State (Vtm) (Max) 1.85V Voltage - Off State 1.6kV
Voltage - Gate Trigger (Vgt) (Max) 2.5V Supplier Device Package TO-247AC
Series - SCR Type Standard Recovery
Packaging Tube Package / Case TO-247-3
Other Names VS40TPS16M3 Operating Temperature -40°C ~ 125°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description SCR 1.6kV 55A Standard Recovery Through Hole TO-247AC
Current - On State (It (RMS)) (Max) 55A Current - On State (It (AV)) (Max) 35A
Current - Off State (Max) 500µA Current - Non Rep. Surge 50, 60Hz (Itsm) 500A @ 50Hz
Current - Hold (Ih) (Max) 200mA Current - Gate Trigger (Igt) (Max) 150mA
