56SD36-01-2-AJS

Grayhill, Inc.Grayhill, Inc.

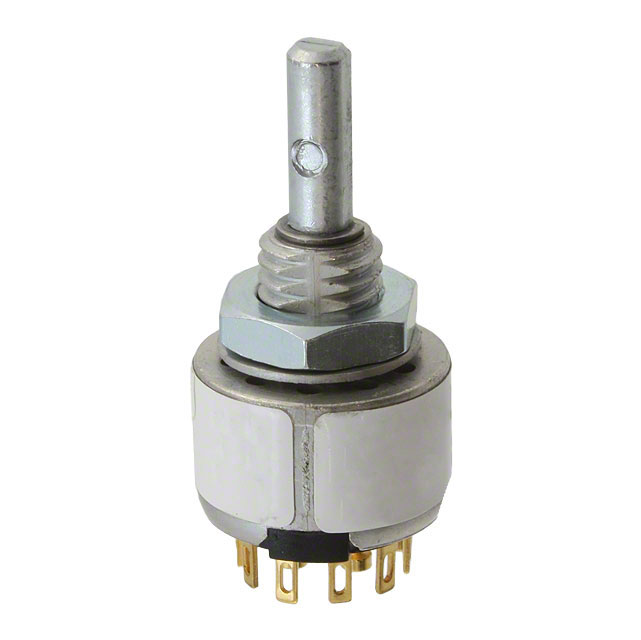

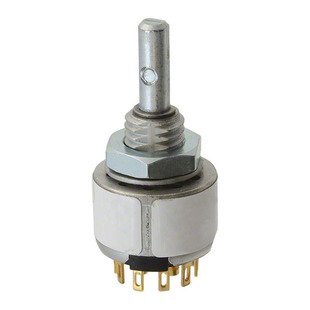

56SD36-01-2-AJS Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 56SD36-01-2-AJS
Manufacturer/Brand: Grayhill, Inc.
Product description SWITCH ROTARY 2-5POS 200MA 115V
Datasheets: 56SD36-01-2-AJS.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 6726 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6726 pcs
Reference Price (In US Dollars)
1 pcs
$5.563
10 pcs
$5.194
25 pcs
$5.12
50 pcs
$5.045
100 pcs
$4.452
250 pcs
$4.303
500 pcs
$4.229
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$5.563

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 56SD36-01-2-AJS

Part Number 56SD36-01-2-AJS Manufacturer Grayhill, Inc.
Description SWITCH ROTARY 2-5POS 200MA 115V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6726 pcs Data sheet 56SD36-01-2-AJS.pdf
Voltage Rating - DC 30V Voltage Rating - AC 115V
Termination Style Solder Lug Series 56
Panel Cutout Dimensions - Other Names 56SD36-01-2-AJS-ND
56SD36012AJS
GH7693
Operating Force 2.520 ~ 6.481gfm Number of Positions 2 ~ 5
Number of Poles per Deck 2 Number of Decks 1
Mounting Type Panel Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Index Stops Adjustable
Features Shaft and Panel Sealed Detailed Description Rotary Switch 2 ~ 5 Position DP5T 200mA (AC/DC) 115VAC Panel Mount
Depth Behind Panel 12.19mm Current Rating 200mA (AC/DC)
Contact Timing Shorting (MBB) Contact Material Brass
Contact Finish Silver Circuit per Deck DP5T
Angle of Throw 36° Actuator Type Flatted (3.17mm Dia)
Actuator Length 9.53mm
