109R

Hammond ManufacturingHammond Manufacturing

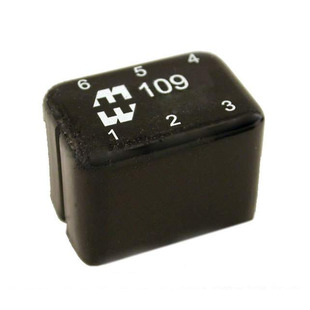

109R Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 109R
Manufacturer/Brand: Hammond Manufacturing
Product description TRANSFORMER AUDIO 10KCT/1.5KCT
Datasheets: 1.109R.pdf2.109R.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 2870 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 2870 pcs
Reference Price (In US Dollars)
1 pcs
$10.884
10 pcs
$9.604
25 pcs
$9.284
50 pcs
$8.324
100 pcs
$8.003
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$10.884

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 109R

Part Number 109R Manufacturer Hammond Manufacturing
Description TRANSFORMER AUDIO 10KCT/1.5KCT Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 2870 pcs Data sheet 1.109R.pdf2.109R.pdf
Weight - Voltage - Isolation 100VRMS
Turns Ratio - Primary:Secondary 5.16:1 Transformer Type Miniature Epoxy Potted
Termination Style PC Pin Size / Dimension 1.315" L x 0.930" W (33.40mm x 23.62mm)
Series 109 Return Loss -
Power Level 2W Packaging Bulk
Other Names 109R-ND
HM2397
Operating Temperature -
Mounting Type Through Hole Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insertion Loss - Impedance - Secondary (Ohms) 1.5kCT
Impedance - Primary (Ohms) 10kCT Height - Seated (Max) 0.920" (23.37mm)
Frequency Response ±1.5dB Frequency Range 300Hz ~ 50kHz
DC Resistance (DCR) - Secondary 58 Ohm DC Resistance (DCR) - Primary 384 Ohm
Approvals -
