1N5804US

Microsemi

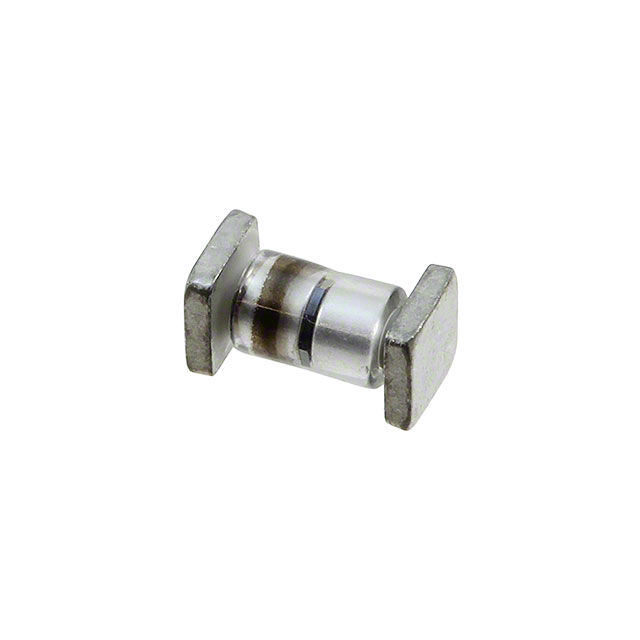

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1N5804US
Manufacturer/Brand:	Microsemi
Product description	DIODE GEN PURP 100V 1A D5A
Datasheets:	1N5804US.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	9140 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9140 pcs

Reference Price (In US Dollars)

1 pcs: $4.113

10 pcs: $3.739

100 pcs: $3.179

500 pcs: $2.711

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.113

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1N5804US

Part Number	1N5804US	Manufacturer	Microsemi
Description	DIODE GEN PURP 100V 1A D5A	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	9140 pcs	Data sheet	1N5804US.pdf
Voltage - Forward (Vf) (Max) @ If	875mV @ 1A	Voltage - DC Reverse (Vr) (Max)	100V
Supplier Device Package	D-5A	Speed	Fast Recovery = 200mA (Io)
Series	-	Reverse Recovery Time (trr)	25ns
Packaging	Bulk	Package / Case	SQ-MELF, A
Operating Temperature - Junction	-65°C ~ 175°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Diode Type	Standard	Detailed Description	Diode Standard 100V 1A Surface Mount D-5A
Current - Reverse Leakage @ Vr	1µA @ 100V	Current - Average Rectified (Io)	1A
Capacitance @ Vr, F	25pF @ 10V, 1MHz
