APTGT200TL60G

Microsemi

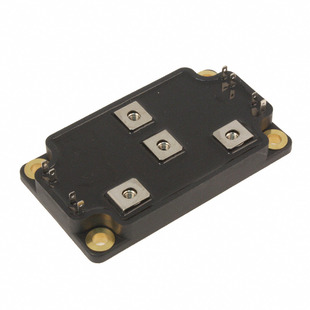

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGT200TL60G
Manufacturer/Brand:	Microsemi
Product description	POWER MODULE IGBT 600V 200A SP6
Datasheets:	1.APTGT200TL60G.pdf 2.APTGT200TL60G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	536 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 536 pcs

Reference Price (In US Dollars)

1 pcs: $62.373

10 pcs: $59.362

25 pcs: $57.211

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$62.373

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGT200TL60G

Part Number	APTGT200TL60G	Manufacturer	Microsemi
Description	POWER MODULE IGBT 600V 200A SP6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	536 pcs	Data sheet	1.APTGT200TL60G.pdf 2.APTGT200TL60G.pdf
Voltage - Collector Emitter Breakdown (Max)	600V	Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 200A
Supplier Device Package	SP6	Series	-
Power - Max	652W	Package / Case	SP6
Other Names	APTGT200TL60GMI APTGT200TL60GMI-ND	Operating Temperature	-40°C ~ 175°C (TJ)
NTC Thermistor	No	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	12.2nF @ 25V	Input	Standard
IGBT Type	Trench Field Stop	Detailed Description	IGBT Module Trench Field Stop Three Level Inverter 600V 300A 652W Chassis Mount SP6
Current - Collector Cutoff (Max)	350µA	Current - Collector (Ic) (Max)	300A
Configuration	Three Level Inverter
