JANTX1N6109AUS

MicrosemiMicrosemi

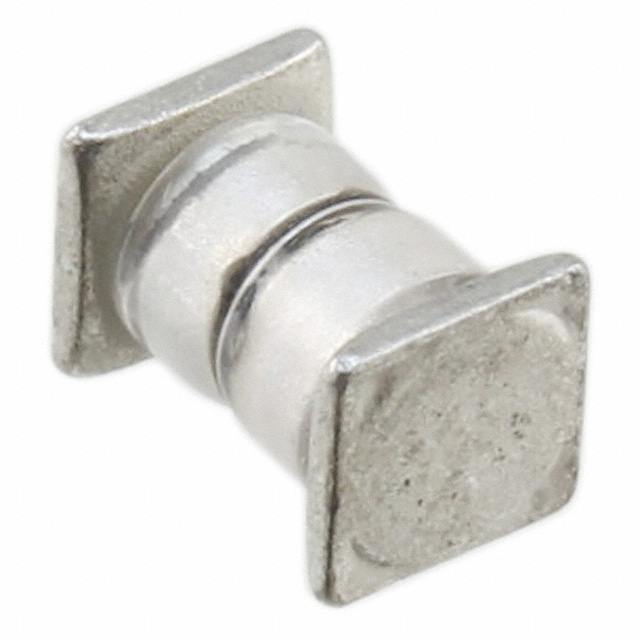

JANTX1N6109AUS Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: JANTX1N6109AUS
Manufacturer/Brand: Microsemi
Product description TVS DIODE 9.9V 18.2V B SQ-MELF
Datasheets: JANTX1N6109AUS.pdf
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 3464 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3464 pcs
Reference Price (In US Dollars)
1 pcs
$10.863
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$10.863

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of JANTX1N6109AUS

Part Number JANTX1N6109AUS Manufacturer Microsemi
Description TVS DIODE 9.9V 18.2V B SQ-MELF Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 3464 pcs Data sheet JANTX1N6109AUS.pdf
Voltage - Reverse Standoff (Typ) 9.9V Voltage - Clamping (Max) @ Ipp 18.2V
Voltage - Breakdown (Min) 12.35V Type Zener
Supplier Device Package B, SQ-MELF Series Military, MIL-PRF-19500/516
Power Line Protection No Power - Peak Pulse 500W
Packaging Bulk Package / Case SQ-MELF, B
Other Names 1086-2512
1086-2512-MIL
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant Current - Peak Pulse (10/1000µs) 27.5A
Capacitance @ Frequency - Bidirectional Channels 1
Applications General Purpose
