JF15AP1EE

NKK SwitchesNKK Switches

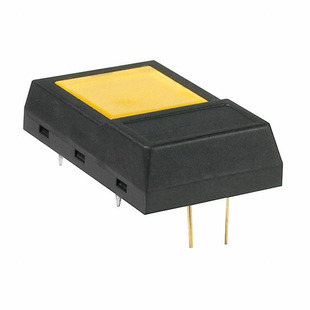

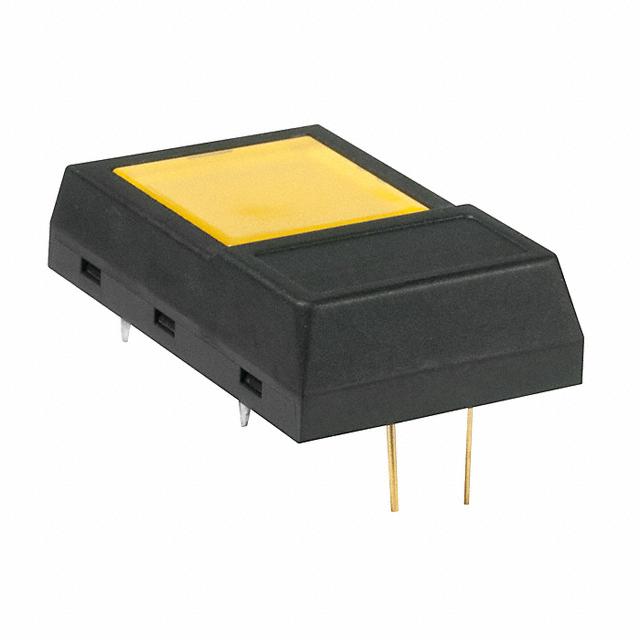

JF15AP1EE Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: JF15AP1EE
Manufacturer/Brand: NKK Switches
Product description SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets: JF15AP1EE.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 15480 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 15480 pcs
Reference Price (In US Dollars)
1 pcs
$2.283
10 pcs
$2.169
25 pcs
$2.112
50 pcs
$2.055
100 pcs
$1.883
250 pcs
$1.712
500 pcs
$1.598
1000 pcs
$1.541
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$2.283

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of JF15AP1EE

Part Number JF15AP1EE Manufacturer NKK Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 15480 pcs Data sheet JF15AP1EE.pdf
Termination Style PC Pin Switch Travel 0.40mm
Switch Function Off-Mom Series JF
Packaging Bulk Outline 22.80mm x 17.70mm
Other Names 360-1267
JF15APC1EE
Operating Temperature -25°C ~ 70°C
Operating Force 300gf Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 500,000 Cycles
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection -
Illumination Voltage (Nominal) 2.1 VDC Illumination Type, Color LED, Yellow
Illumination Illuminated Features Process Sealed
Detailed Description Tactile Switch SPST-NO Top Actuated Through Hole Contact Rating @ Voltage 0.05A @ 24VDC
Circuit SPST-NO Actuator Type Square Button
Actuator Orientation Top Actuated Actuator Material Polycarbonate (PC)
Actuator Length, Right Angle - Actuator Height off PCB, Vertical 6.70mm
