WR12ASN

NKK SwitchesNKK Switches

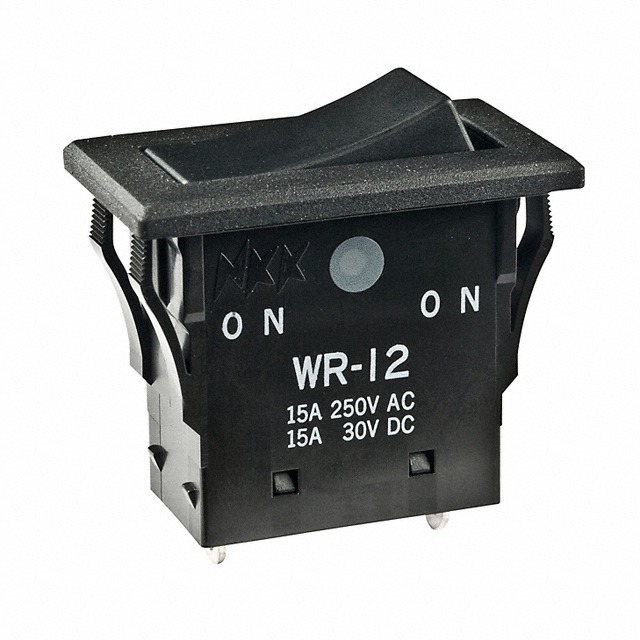

WR12ASN Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: WR12ASN
Manufacturer/Brand: NKK Switches
Product description SWITCH ROCKER SPDT 15A 125V
Datasheets: WR12ASN.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 7908 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 7908 pcs
Reference Price (In US Dollars)
1 pcs
$4.215
10 pcs
$3.793
25 pcs
$3.688
50 pcs
$3.582
100 pcs
$3.477
250 pcs
$3.372
500 pcs
$2.95
1000 pcs
$2.792
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$4.215

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of WR12ASN

Part Number WR12ASN Manufacturer NKK Switches
Description SWITCH ROCKER SPDT 15A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 7908 pcs Data sheet WR12ASN.pdf
Voltage Rating - DC 30V Voltage Rating - AC 125V
Termination Style Solder Lug Switch Function On-On
Series WR Panel Cutout Dimensions Rectangular - 34.20mm x 17.20mm
Packaging Bulk Operating Temperature -25°C ~ 85°C
Mounting Type Panel Mount, Snap-In Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mechanical Life 30,000 Cycles Lead Free Status / RoHS Status Lead free / RoHS Compliant
Ingress Protection IP67 - Dust Tight, Waterproof Illumination Voltage (Nominal) -
Illumination Type, Color - Features -
Electrical Life 15,000 Cycles Detailed Description Rocker Switch SPDT 15A (AC/DC) 125V Panel Mount, Snap-In
Current Rating 15A (AC/DC) Color - Actuator/Cap Black
Circuit SPDT California Prop 65 Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov.
Actuator Type Concave (Curved) Actuator Marking No Marking
