PCF1A561MCL9GS

NichiconNichicon

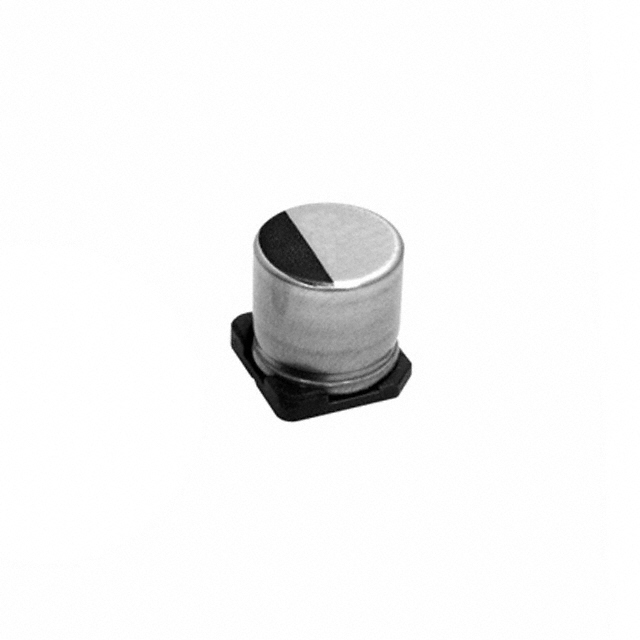

PCF1A561MCL9GS Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PCF1A561MCL9GS
Manufacturer/Brand: Nichicon
Product description CAP ALUM POLY 560UF 20% 10V SMD
Datasheets: 1.PCF1A561MCL9GS.pdf2.PCF1A561MCL9GS.pdf3.PCF1A561MCL9GS.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 57752 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 57752 pcs
Reference Price (In US Dollars)
1 pcs
$0.66
10 pcs
$0.535
100 pcs
$0.409
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.66

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PCF1A561MCL9GS

Part Number PCF1A561MCL9GS Manufacturer Nichicon
Description CAP ALUM POLY 560UF 20% 10V SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 57752 pcs Data sheet 1.PCF1A561MCL9GS.pdf2.PCF1A561MCL9GS.pdf3.PCF1A561MCL9GS.pdf
Voltage - Rated 10V Type Polymer
Tolerance ±20% Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Size / Dimension 0.394" Dia (10.00mm) Series PCF
Ripple Current @ High Frequency 5.23A @ 100kHz Ratings -
Packaging Cut Tape (CT) Package / Case Radial, Can - SMD
Other Names 493-14007-1 Operating Temperature -55°C ~ 105°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lifetime @ Temp. 2000 Hrs @ 105°C Lead Spacing -
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 0.504" (12.80mm)
ESR (Equivalent Series Resistance) 13 mOhm Detailed Description 560µF 10V Aluminum Polymer Capacitor Radial, Can - SMD 13 mOhm 2000 Hrs @ 105°C
Capacitance 560µF Applications General Purpose
