UHW1H681MHD

NichiconNichicon

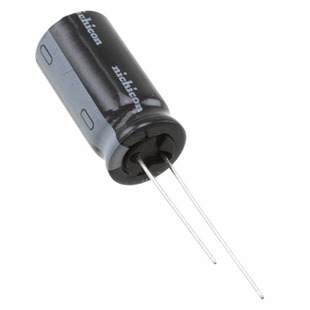

UHW1H681MHD Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: UHW1H681MHD
Manufacturer/Brand: Nichicon
Product description CAP ALUM 680UF 20% 50V RADIAL
Datasheets: UHW1H681MHD.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 57305 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 57305 pcs
Reference Price (In US Dollars)
1 pcs
$0.534
10 pcs
$0.422
100 pcs
$0.316
500 pcs
$0.239
1000 pcs
$0.211
2500 pcs
$0.197
5000 pcs
$0.19
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.534

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of UHW1H681MHD

Part Number UHW1H681MHD Manufacturer Nichicon
Description CAP ALUM 680UF 20% 50V RADIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 57305 pcs Data sheet UHW1H681MHD.pdf
Voltage - Rated 50V Tolerance ±20%
Surface Mount Land Size - Size / Dimension 0.492" Dia (12.50mm)
Series UHW Ripple Current @ Low Frequency 1.68A @ 120Hz
Ripple Current @ High Frequency 2.8A @ 100kHz Ratings -
Polarization Polar Packaging Bulk
Package / Case Radial, Can Other Names 493-6912
Operating Temperature -40°C ~ 105°C Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lifetime @ Temp. 10000 Hrs @ 105°C
Lead Spacing 0.197" (5.00mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Impedance 23 mOhms Height - Seated (Max) 1.063" (27.00mm)
ESR (Equivalent Series Resistance) - Detailed Description 680µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Capacitance 680µF Applications General Purpose
