A6HF-8102

OmronOmron

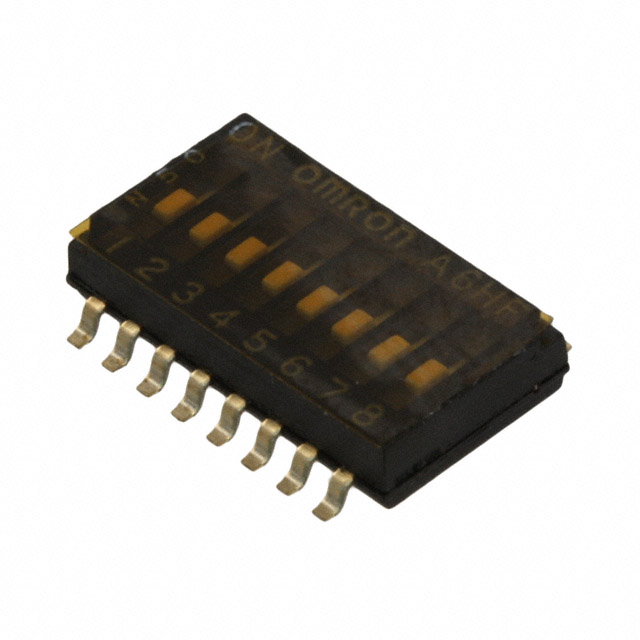

A6HF-8102 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: A6HF-8102
Manufacturer/Brand: Omron
Product description SWITCH SLIDE DIP SPST 25MA 24V
Datasheets: A6HF-8102.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 18845 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 18845 pcs
Reference Price (In US Dollars)
1 pcs
$1.791
10 pcs
$1.713
40 pcs
$1.635
80 pcs
$1.557
120 pcs
$1.401
280 pcs
$1.245
520 pcs
$1.206
1000 pcs
$1.09
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.791

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of A6HF-8102

Part Number A6HF-8102 Manufacturer Omron
Description SWITCH SLIDE DIP SPST 25MA 24V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 18845 pcs Data sheet A6HF-8102.pdf
Washable Yes Voltage Rating 24VDC
Termination Style Gull Wing Series A6HF
Pitch 0.050" (1.27mm), Half Packaging Tube
Other Names A6HF8102
SW1182
Operating Temperature -30°C ~ 85°C
Number of Positions 8 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life -
Length 0.444" (11.28mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Height Above Board 0.091" (2.30mm) Features Tape Seal
Electrical Life 1,000 Cycles Detailed Description Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Current Rating 25mA Contact Material -
Contact Finish Gold Circuit SPST
Body Material - Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
