XF2M-1415-1A-R100

OmronOmron

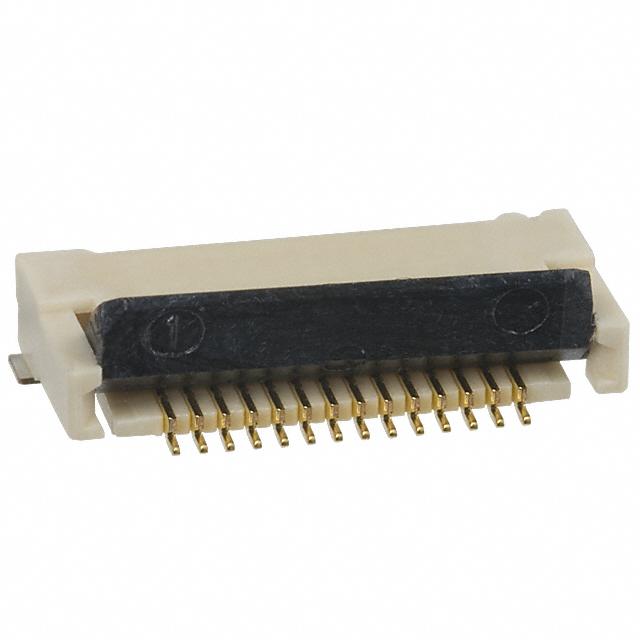

XF2M-1415-1A-R100 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: XF2M-1415-1A-R100
Manufacturer/Brand: Omron
Product description CONN FPC 14POS 0.50MM R/A
Datasheets: XF2M-1415-1A-R100.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 45273 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 45273 pcs
Reference Price (In US Dollars)
100 pcs
$0.704
300 pcs
$0.616
500 pcs
$0.598
1000 pcs
$0.51
2500 pcs
$0.508
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.704

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of XF2M-1415-1A-R100

Part Number XF2M-1415-1A-R100 Manufacturer Omron
Description CONN FPC 14POS 0.50MM R/A Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 45273 pcs Data sheet XF2M-1415-1A-R100.pdf
Voltage Rating 50V Termination Solder
Series XF2M Pitch 0.020" (0.50mm)
Packaging Tape & Reel (TR) Other Names XF2M-1415-1A-R100 BY OMZ
XF2M-1415-1A-R100 BYOMZ
XF2M14151AR100
XF2M14151AR100BYOMZ
Operating Temperature -30°C ~ 85°C Number of Positions 14
Mounting Type Surface Mount, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Mating Cycles 20 Material Flammability Rating UL94 V-0
Locking Feature Rotary Lock, Backlock Lead Free Status / RoHS Status Lead free / RoHS Compliant
Housing Material Liquid Crystal Polymer (LCP), Halogen Free Housing Color Natural
Height Above Board 0.083" (2.10mm) Flat Flex Type FPC
Features - FFC, FCB Thickness 0.30mm
Detailed Description 14 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle Current Rating 0.5A
Contact Material Copper Alloy Contact Finish Thickness 5.90µin (0.150µm)
Contact Finish Gold Connector/Contact Type Contacts, Top and Bottom
Cable End Type Tapered Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Color Black
