STH3N150-2

STMicroelectronics

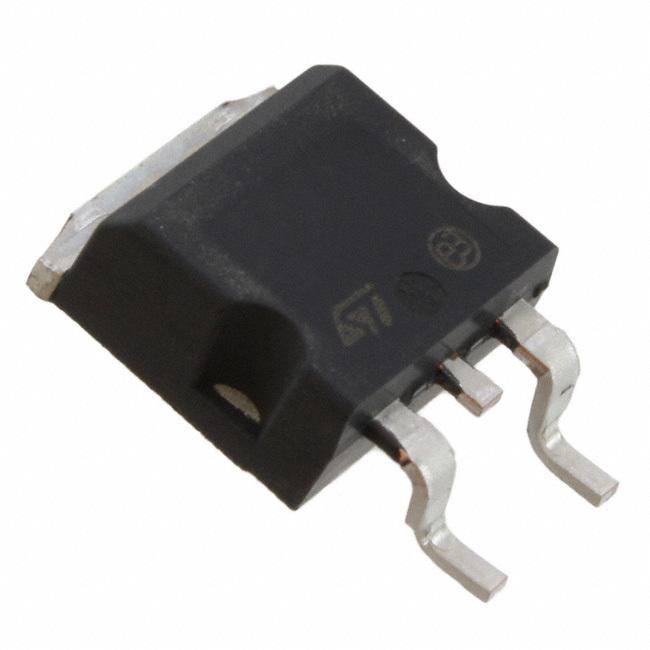

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STH3N150-2
Manufacturer/Brand:	STMicroelectronics
Product description	MOSFET N-CH 1500V 2.5A H2PAK-2
Datasheets:	STH3N150-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12878 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12878 pcs

Reference Price (In US Dollars)

1 pcs: $2.912

10 pcs: $2.621

100 pcs: $2.155

500 pcs: $1.806

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.912

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STH3N150-2

Part Number	STH3N150-2	Manufacturer	STMicroelectronics
Description	MOSFET N-CH 1500V 2.5A H2PAK-2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12878 pcs	Data sheet	STH3N150-2.pdf
Vgs(th) (Max) @ Id	5V @ 250µA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	H²PAK
Series	PowerMESH™	Rds On (Max) @ Id, Vgs	9 Ohm @ 1.3A, 10V
Power Dissipation (Max)	140W (Tc)	Packaging	Cut Tape (CT)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab) Variant	Other Names	497-13876-1
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	939pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	29.3nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	1500V
Detailed Description	N-Channel 1500V 2.5A (Tc) 140W (Tc) Surface Mount H²PAK	Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
