TLW-106-06-T-D

Samtec, Inc.

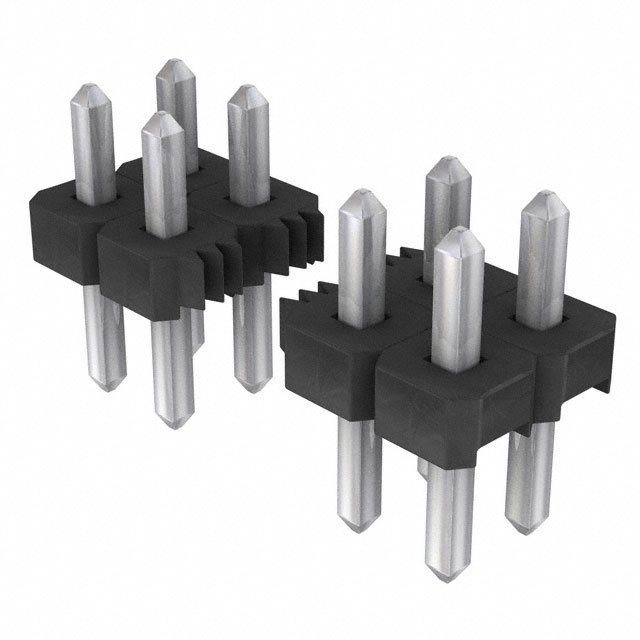

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLW-106-06-T-D
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER .100" 12POS DUAL TIN
Datasheets:	1.TLW-106-06-T-D.pdf 2.TLW-106-06-T-D.pdf 3.TLW-106-06-T-D.pdf 4.TLW-106-06-T-D.pdf 5.TLW-106-06-T-D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41887 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41887 pcs

Reference Price (In US Dollars)

1 pcs: $0.738

10 pcs: $0.659

100 pcs: $0.543

500 pcs: $0.429

1000 pcs: $0.368

5000 pcs: $0.336

10000 pcs: $0.323

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.738

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLW-106-06-T-D

Part Number	TLW-106-06-T-D	Manufacturer	Samtec, Inc.
Description	CONN HEADER .100" 12POS DUAL TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41887 pcs	Data sheet	1.TLW-106-06-T-D.pdf 2.TLW-106-06-T-D.pdf 3.TLW-106-06-T-D.pdf 4.TLW-106-06-T-D.pdf 5.TLW-106-06-T-D.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	Flex Stack, TLW	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.118" (3.00mm)	Other Names	SAM1097-06
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.060" (1.52mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 12 position 0.100" (2.54mm)
Current Rating	5.2A per Contact	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	0.135" (3.43mm)	Contact Length - Mating	0.105" (2.67mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
