TSM-102-01-T-DH-P-TR

Samtec, Inc.

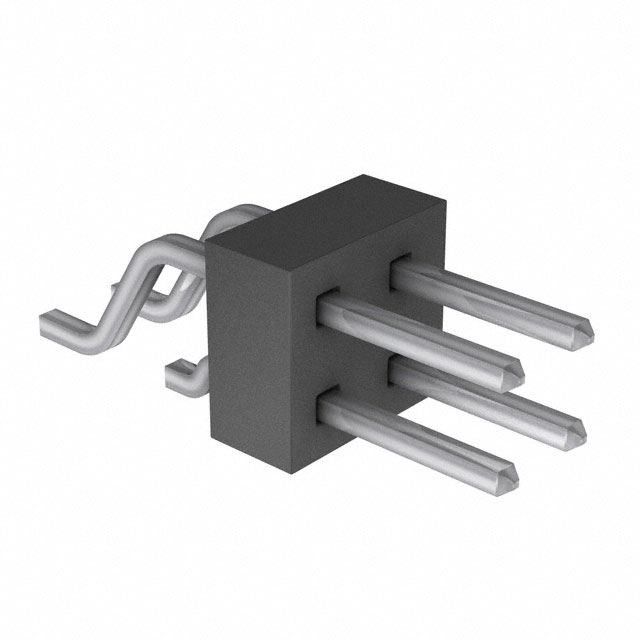

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TSM-102-01-T-DH-P-TR
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 4POS .100" DBL SMD
Datasheets:	1.TSM-102-01-T-DH-P-TR.pdf 2.TSM-102-01-T-DH-P-TR.pdf 3.TSM-102-01-T-DH-P-TR.pdf 4.TSM-102-01-T-DH-P-TR.pdf 5.TSM-102-01-T-DH-P-TR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	140710 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 140710 pcs

Reference Price (In US Dollars)

300 pcs: $0.256

600 pcs: $0.231

900 pcs: $0.224

1500 pcs: $0.192

3000 pcs: $0.186

7500 pcs: $0.179

15000 pcs: $0.167

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.256

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TSM-102-01-T-DH-P-TR

Part Number	TSM-102-01-T-DH-P-TR	Manufacturer	Samtec, Inc.
Description	CONN HEADER 4POS .100" DBL SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	140710 pcs	Data sheet	1.TSM-102-01-T-DH-P-TR.pdf 2.TSM-102-01-T-DH-P-TR.pdf 3.TSM-102-01-T-DH-P-TR.pdf 4.TSM-102-01-T-DH-P-TR.pdf 5.TSM-102-01-T-DH-P-TR.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TSM	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	SAM14775TR TSM-102-01-T-DH-P-TR-ND
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.240" (6.10mm)	Insulation Color	Black
Ingress Protection	-	Features	Pick and Place
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	0.230" (5.84mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
