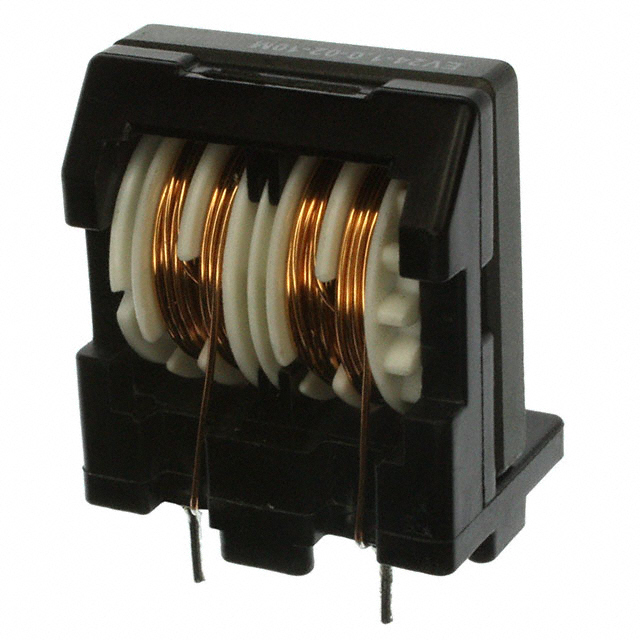

Part Number | EV24-1.0-02-10M | Manufacturer | Schaffner EMC, Inc. |
---|---|---|---|
Description | COMMON MODE CHOKE 10MH 1A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 36593 pcs | Data sheet | EV24-1.0-02-10M.pdf |
Voltage Rating - DC | - | Voltage Rating - AC | 250V |
Size / Dimension | 0.969" L x 0.685" W (24.60mm x 17.40mm) | Series | EV |
Ratings | - | Packaging | Tube |
Package / Case | Vertical, 4 PC Pin | Other Names | 295-503 801056 817-1040 EV24-1,0-02-10M EV24100210M |
Operating Temperature | -25°C ~ 100°C | Number of Lines | 2 |
Mounting Type | Through Hole | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Inductance @ Frequency | 10mH @ 400Hz | Height (Max) | 1.185" (30.10mm) |
Filter Type | Power Line | Features | - |
Detailed Description | 10mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 244 mOhm (Typ) | DC Resistance (DCR) (Max) | 244 mOhm (Typ) |
Current Rating (Max) | 1A | Approvals | - |
