PLT20-32-130B

TamuraTamura

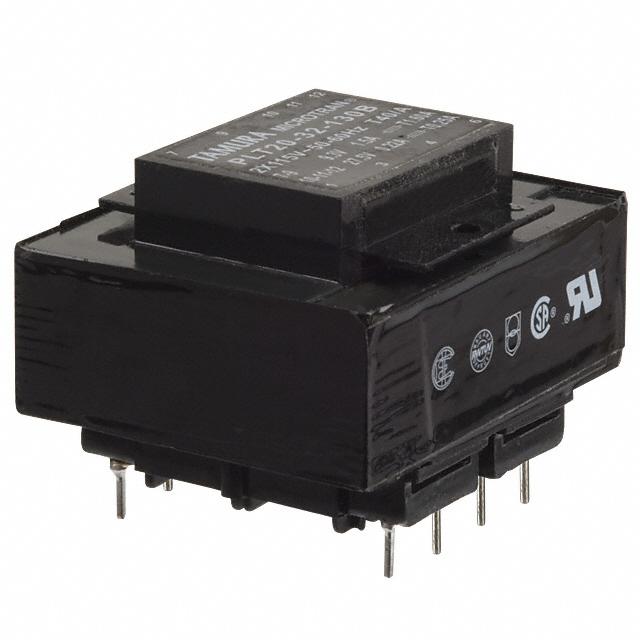

PLT20-32-130B Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PLT20-32-130B
Manufacturer/Brand: Tamura
Product description XFRMR LAMINATED 20VA THRU HOLE
Datasheets: PLT20-32-130B.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5496 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5496 pcs
Reference Price (In US Dollars)
1 pcs
$6.248
10 pcs
$4.76
25 pcs
$4.388
50 pcs
$4.239
100 pcs
$4.165
250 pcs
$4.016
500 pcs
$3.867
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$6.248

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PLT20-32-130B

Part Number PLT20-32-130B Manufacturer Tamura
Description XFRMR LAMINATED 20VA THRU HOLE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5496 pcs Data sheet PLT20-32-130B.pdf
Weight - Voltage - Secondary (Full Load) Parallel 9.3V, Series 27.5V
Voltage - Primary 115V, 230V Voltage - Isolation 3500Vrms
Type Laminated Core Termination Style PC Pin
Size / Dimension 57.20mm L x 47.60mm W Series -
Secondary Winding(s) Dual Primary Winding(s) Dual
Power - Max 20 VA Other Names MT3143
PLT20-32
PLT20-32(BOX)
PLT20-32(BULK)
PLT2032130B
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 41.38mm
Current - Output (Max) Parallel 220mA, Series 1.5A Center Tap Yes
