TLP104(V4,E

Toshiba Semiconductor and Storage

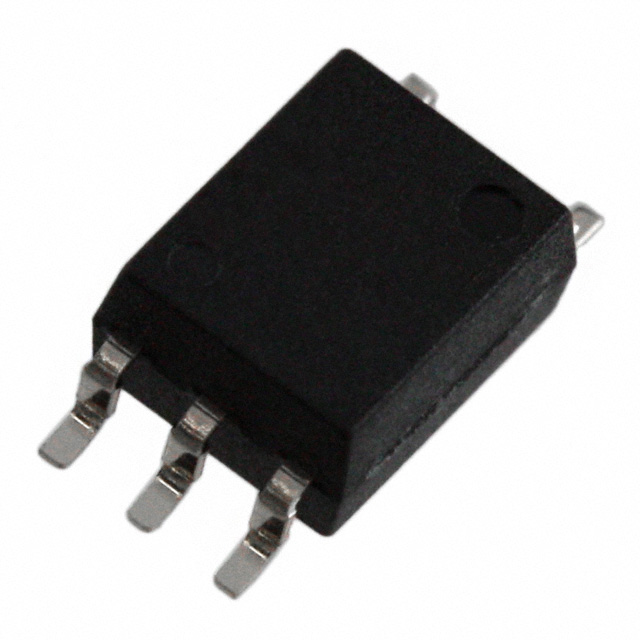

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP104(V4,E
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	OPTOISO 3.75KV OPEN COLL SO6
Datasheets:	TLP104(V4,E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51871 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 51871 pcs

Reference Price (In US Dollars)

1 pcs: $0.667

10 pcs: $0.542

25 pcs: $0.417

125 pcs: $0.375

250 pcs: $0.333

500 pcs: $0.283

1000 pcs: $0.233

2500 pcs: $0.222

5000 pcs: $0.217

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.667

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP104(V4,E

Part Number	TLP104(V4,E	Manufacturer	Toshiba Semiconductor and Storage
Description	OPTOISO 3.75KV OPEN COLL SO6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51871 pcs	Data sheet	TLP104(V4,E.pdf
Voltage - Supply	4.5 V ~ 30 V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.61V	Supplier Device Package	6-SO, 5 Lead
Series	-	Rise / Fall Time (Typ)	-
Propagation Delay tpLH / tpHL (Max)	550ns, 400ns	Packaging	Tube
Package / Case	6-SOIC (0.179", 4.55mm Width), 5 Leads	Output Type	Open Collector
Other Names	TLP104(V4,E(T TLP104(V4E TLP104V4E	Operating Temperature	-40°C ~ 125°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inputs - Side 1/Side 2	1/0	Input Type	DC
Detailed Description	Logic Output Optoisolator 1Mbps Open Collector 3750Vrms 1 Channel 15kV/µs CMTI 6-SO, 5 Lead	Data Rate	1Mbps
Current - Output / Channel	8mA	Current - DC Forward (If) (Max)	25mA
Common Mode Transient Immunity (Min)	15kV/µs
