FD8-12

Triad MagneticsTriad Magnetics

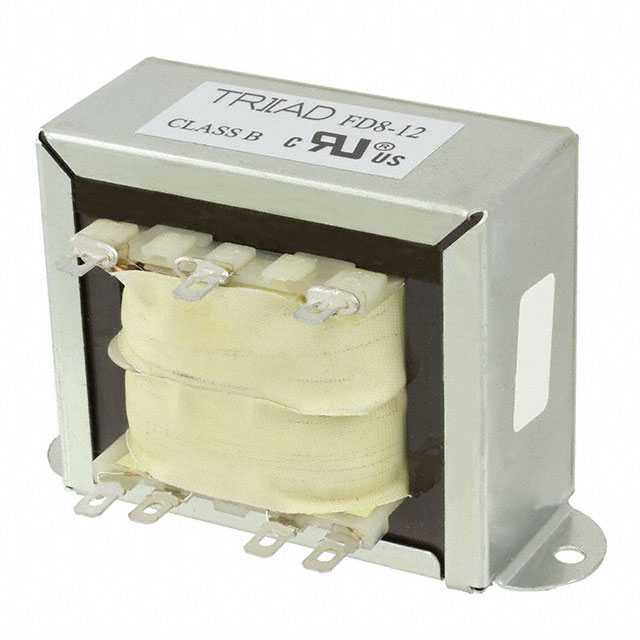

FD8-12 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: FD8-12
Manufacturer/Brand: Triad Magnetics
Product description XFRMR LAMINATED THRU HOLE
Datasheets: FD8-12.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5019 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5019 pcs
Reference Price (In US Dollars)
1 pcs
$7.284
10 pcs
$6.428
25 pcs
$6.214
50 pcs
$5.571
100 pcs
$5.356
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$7.284

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of FD8-12

Part Number FD8-12 Manufacturer Triad Magnetics
Description XFRMR LAMINATED THRU HOLE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5019 pcs Data sheet FD8-12.pdf
Weight 2.8 lbs (1.3kg) Voltage - Secondary (Full Load) 12.6V
Voltage - Primary 115V, 230V Voltage - Isolation 2500VAC
Type Laminated Core Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension 102.39mm L x 57.15mm W Series Quick Pack
Secondary Winding(s) Single Primary Winding(s) Dual
Power - Max 100 VA Other Names 237-1765
Mounting Type Chassis Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 65.07mm
Current - Output (Max) 8A Center Tap Yes
