FS24-500-C2

Triad MagneticsTriad Magnetics

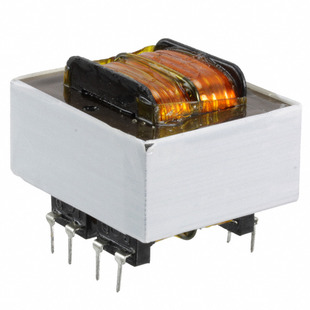

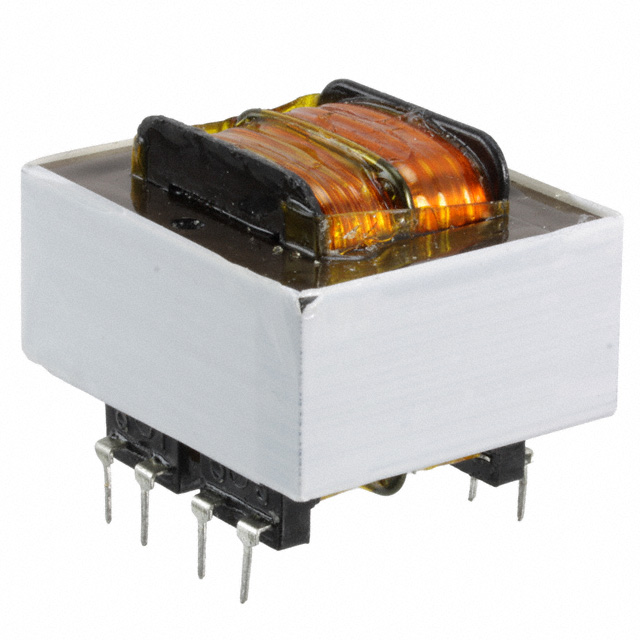

FS24-500-C2 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: FS24-500-C2
Manufacturer/Brand: Triad Magnetics
Product description XFRMR LAMINATED 12VA THRU HOLE
Datasheets: FS24-500-C2.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 9369 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 9369 pcs
Reference Price (In US Dollars)
1 pcs
$3.811
16 pcs
$2.918
32 pcs
$2.472
56 pcs
$2.432
104 pcs
$2.31
256 pcs
$2.286
504 pcs
$2.253
1000 pcs
$2.229
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$3.811

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of FS24-500-C2

Part Number FS24-500-C2 Manufacturer Triad Magnetics
Description XFRMR LAMINATED 12VA THRU HOLE Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 9369 pcs Data sheet FS24-500-C2.pdf
Weight 0.7 lb (317.51g) Voltage - Secondary (Full Load) Parallel 12V, Series 24V
Voltage - Primary 115V, 230V Voltage - Isolation 4200Vrms
Type Laminated Core Termination Style PC Pin
Size / Dimension 47.63mm L x 39.67mm W Series Split Pack™, Class 2/3, FS
Secondary Winding(s) Dual Primary Winding(s) Dual
Power - Max 12 VA Other Names 237-1482
FS24-500-C2-B
FS24-500-C2-ND
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height - Seated (Max) 36.50mm
Current - Output (Max) Parallel 1A, Series 500mA Center Tap No
