D2516-6V0C-AR-WE

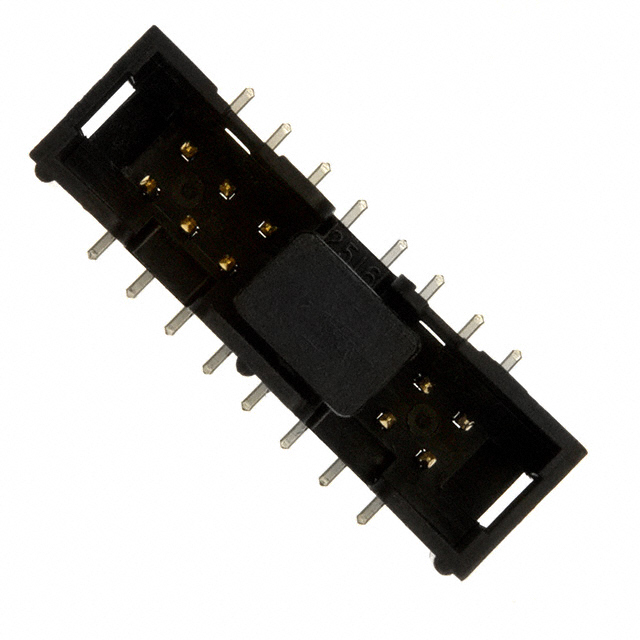

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D2516-6V0C-AR-WE
Manufacturer/Brand:	3M
Product description	CONN HEADER 16POS SMD VERT 10AU
Datasheets:	1.D2516-6V0C-AR-WE.pdf 2.D2516-6V0C-AR-WE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	53057 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 53057 pcs

Reference Price (In US Dollars)

200 pcs: $0.673

400 pcs: $0.609

600 pcs: $0.561

1000 pcs: $0.48

2000 pcs: $0.464

5000 pcs: $0.426

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.673

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D2516-6V0C-AR-WE

Part Number	D2516-6V0C-AR-WE	Manufacturer	3M
Description	CONN HEADER 16POS SMD VERT 10AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	53057 pcs	Data sheet	1.D2516-6V0C-AR-WE.pdf 2.D2516-6V0C-AR-WE.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	D2500	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	00051119907261 05111990726 5111990726 51119907261 7010396926 80001204538 D2516-6V0C-AR-WD D25166V0CARWE MSH16ETR
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Insulation Height	0.390" (9.91mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot, Pick and Place
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 16 position 0.100" (2.54mm)
Current Rating	1.75A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	-	Contact Length - Mating	0.243" (6.17mm)
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
