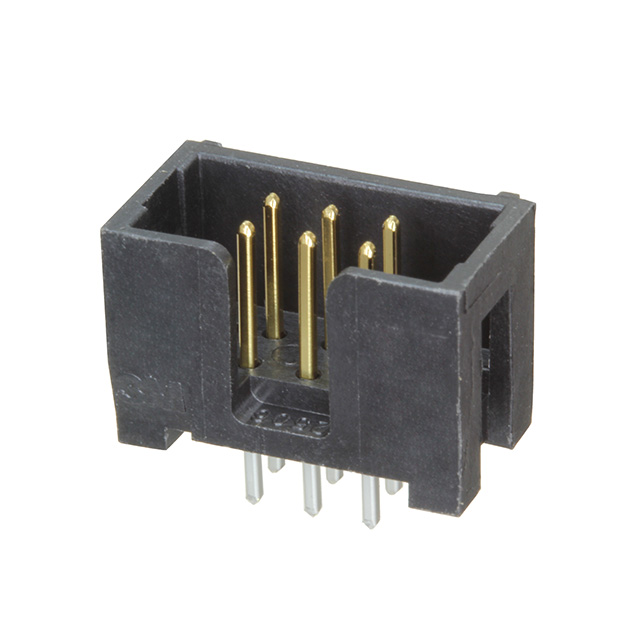

N2506-6002RB

Image may be representation. See specifications for product details.

Product Overview

Part Number:	N2506-6002RB
Manufacturer/Brand:	3M
Product description	CONN HEADER 6POS STR .100 T/H
Datasheets:	N2506-6002RB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66386 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 66386 pcs

Reference Price (In US Dollars)

1 pcs: $0.569

10 pcs: $0.516

100 pcs: $0.443

500 pcs: $0.369

1000 pcs: $0.316

5000 pcs: $0.28

10000 pcs: $0.274

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.569

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of N2506-6002RB

Part Number	N2506-6002RB	Manufacturer	3M
Description	CONN HEADER 6POS STR .100 T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66386 pcs	Data sheet	N2506-6002RB.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	2500	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	00051115605192 05111560519 3M157658 5111560519 51115605192 7100050398 80001386947 N2506-6002RB-ND
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Insulation Height	0.390" (9.91mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 6 position 0.100" (2.54mm)
Current Rating	1.75A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.112" (2.84mm)	Contact Length - Mating	0.243" (6.17mm)
Contact Finish Thickness - Post	200.0µin (5.08µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
