AD7534JNZ

ADI (Analog Devices, Inc.)

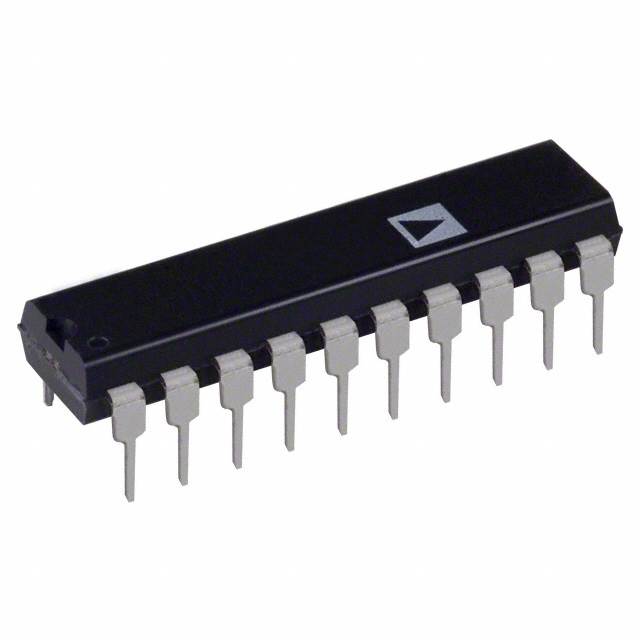

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AD7534JNZ
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC DAC 14BIT MULT W/BUFF 20-DIP
Datasheets:	AD7534JNZ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1917 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1917 pcs

Reference Price (In US Dollars)

1 pcs: $15.334

18 pcs: $14.306

108 pcs: $12.421

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$15.334

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AD7534JNZ

Part Number	AD7534JNZ	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC DAC 14BIT MULT W/BUFF 20-DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1917 pcs	Data sheet	AD7534JNZ.pdf
Voltage - Supply, Digital	11.4 V ~ 15.75 V	Voltage - Supply, Analog	11.4 V ~ 15.75 V
Supplier Device Package	20-PDIP	Settling Time	1.5µs
Series	-	Reference Type	External
Packaging	Tube	Package / Case	20-DIP (0.300", 7.62mm)
Output Type	Current - Unbuffered	Operating Temperature	0°C ~ 70°C
Number of D/A Converters	1	Number of Bits	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	INL/DNL (LSB)	±2 (Max), ±1 (Max)
Differential Output	No	Detailed Description	14 Bit Digital to Analog Converter 1 20-PDIP
Data Interface	Parallel	Base Part Number	AD7534
Architecture	R-2R
