FOD8316

AMI Semiconductor / ON Semiconductor

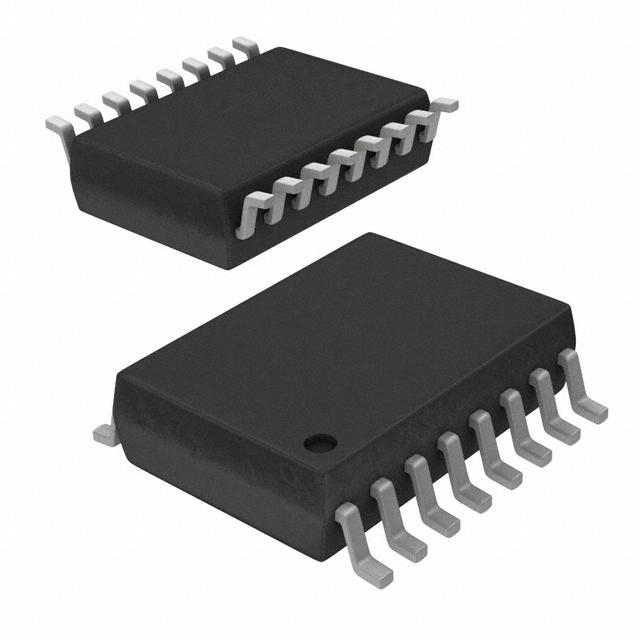

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FOD8316
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 4.243KV GATE DRVR 16SO
Datasheets:	FOD8316.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16724 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 16724 pcs

Reference Price (In US Dollars)

1 pcs: $1.854

10 pcs: $1.545

100 pcs: $1.113

500 pcs: $0.896

1000 pcs: $0.822

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.854

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FOD8316

Part Number	FOD8316	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 4.243KV GATE DRVR 16SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16724 pcs	Data sheet	FOD8316.pdf
Voltage - Supply	15 V ~ 30 V	Voltage - Isolation	4243Vrms
Voltage - Forward (Vf) (Typ)	-	Technology	Optical Coupling
Supplier Device Package	16-SO	Series	-
Rise / Fall Time (Typ)	34ns, 34ns	Pulse Width Distortion (Max)	300ns
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns	Packaging	Tube
Package / Case	16-SOIC (0.295", 7.50mm Width)	Operating Temperature	-40°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	3A Gate Driver Optical Coupling 4243Vrms 1 Channel 16-SO	Current - Peak Output	3A
Current - Output High, Low	2.5A, 2.5A	Common Mode Transient Immunity (Min)	35kV/µs
Approvals	UL
