SB530

AMI Semiconductor / ON Semiconductor

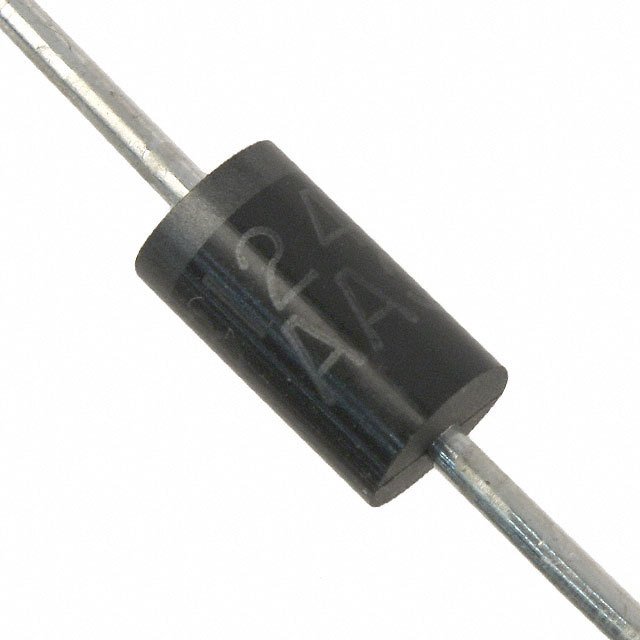

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SB530
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	DIODE SCHOTTKY 30V 5A DO201AD
Datasheets:	1.SB530.pdf 2.SB530.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	436761 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 436761 pcs

Reference Price (In US Dollars)

1250 pcs: $0.075

2500 pcs: $0.068

6250 pcs: $0.064

12500 pcs: $0.06

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.075

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SB530

Part Number	SB530	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	DIODE SCHOTTKY 30V 5A DO201AD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	436761 pcs	Data sheet	1.SB530.pdf 2.SB530.pdf
Voltage - Forward (Vf) (Max) @ If	550mV @ 5A	Voltage - DC Reverse (Vr) (Max)	30V
Supplier Device Package	DO-201AD	Speed	Fast Recovery = 200mA (Io)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	DO-201AD, Axial	Other Names	SB530FS SB530FS-ND SB530FSTR
Operating Temperature - Junction	-55°C ~ 150°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 30V 5A Through Hole DO-201AD
Current - Reverse Leakage @ Vr	500µA @ 30V	Current - Average Rectified (Io)	5A
Capacitance @ Vr, F	500pF @ 4V, 1MHz	Base Part Number	SB530
