TE Connectivity AMP Connectors

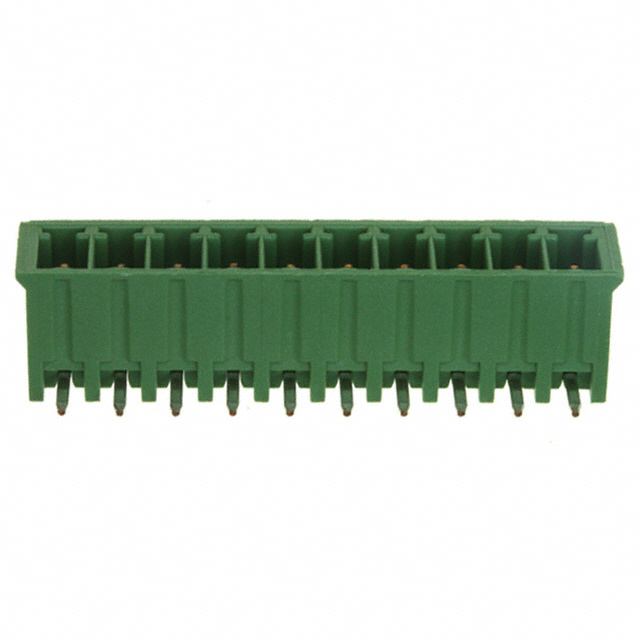

| Part Number | 1-284512-0 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | TERM BLOCK HDR 10POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30984 pcs | Data sheet | 1.1-284512-0.pdf2.1-284512-0.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - Coaxial | - | Voltage - UL | 11A |
| Voltage - IEC | - | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | Tin | Termination Style | Solder |
| Terminal - Width | 1 | Series | Buchanan |
| RoHS Status | Bulk | Plug Wire Entry | 90°, Right Angle |
| Other Names | 1-284512-0-ND 12845120 A98400 |
Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 10 | Number of Conductors | 0.138" (3.50mm) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Part Number | 1-284512-0 |
| Header Orientation | 10 | Front Panel Wire Connection | 0.134" (3.40mm) |
| Filter Type | 300V | Features | - |
| Expanded Description | 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole | Description | TERM BLOCK HDR 10POS 90DEG 3.5MM |
| Current - UL | - | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Finish - Mating | 0.287" (7.30mm) |
| Color | Green | Cable Opening | Polyamide (PA66), Nylon 6/6 |
| Bundle Center to Mounting Center | - |
