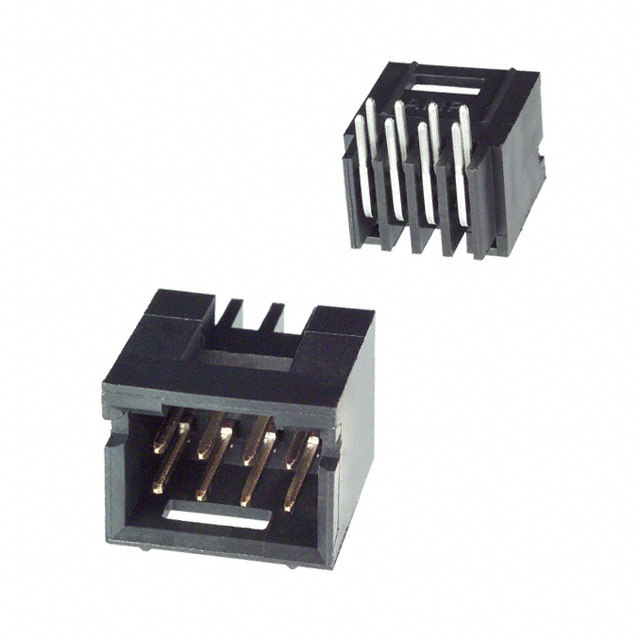

TE Connectivity AMP Connectors
| Part Number | 102617-2 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN HEADER R/A .100 8POS 15AU | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 113924 pcs | Data sheet | 102617-2.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | AMPMODU Mod II |
| Row Spacing - Mating | Shrouded - 4 Wall | RoHS Status | Tray |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.135" (3.43mm) | Other Names | 102617-2-ND A26760 |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 8 | Number of Contacts | 100µin (2.54µm) |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Part Number | 102617-2 | Length - Post (Mating) | - |
| Insulation Material | Tin-Lead | Insulation Height | - |
| Features | - | Expanded Description | 8 Positions Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Description | CONN HEADER R/A .100 8POS 15AU | Current Rating | 3A |
| Current - Max/Contact | Detent Lock | Contact Length - Post | 0.318" (8.08mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | Thermoplastic |
| Contact Finish Thickness - Mating | Gold | Contact Finish - Post | 15µin (0.38µm) |
| Contact Finish - Mating | 0.400" (10.16mm) | Connector Type | Header |
| Actual Diameter | Black |
