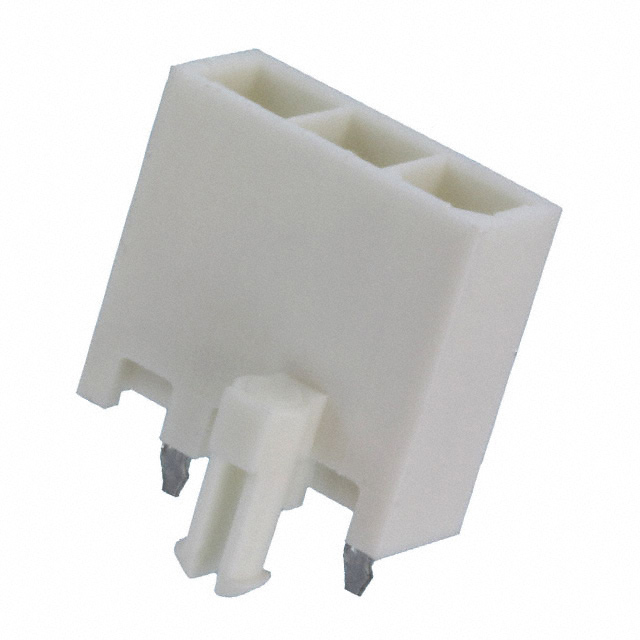

TE Connectivity AMP Connectors
| Part Number | 2029113-3 | Manufacturer | TE Connectivity AMP Connectors |
|---|---|---|---|
| Description | CONN HEADER 3POS T/H W/PEGS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 194875 pcs | Data sheet | 2029113-3.pdf |
| Voltage - DC Spark Over (Nom) | Brass | Type Attributes | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Stacking Direction | Male Pin | Shrouding | 0.165" (4.20mm) |
| Shield Termination | Square | Series | VAL-U-LOK |
| Row Spacing - Mating | Shrouded - 4 Wall | RoHS Status | Bulk |
| Ripple Current - Low Frequency | General Purpose, Industrial, Lighting | Pitch - Connector | 600VAC |
| Overall Contact Length | 0.138" (3.50mm) | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions | 3 |
| Number of Contacts | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | 2029113-3 |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | Board Lock |
| Expanded Description | 3 Positions Header Connector 0.165" (4.20mm) Through Hole Tin | Description | CONN HEADER 3POS T/H W/PEGS |
| Current Rating | 9A | Current - Max/Contact | Locking Ramp |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Polyamide (PA66), Nylon 6/6, Glass Filled | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | - | Contact Finish - Mating | 0.504" (12.80mm) |
| Connector Type | Header | Actual Diameter | White |
