SPD127R-223M

API DelevanAPI Delevan

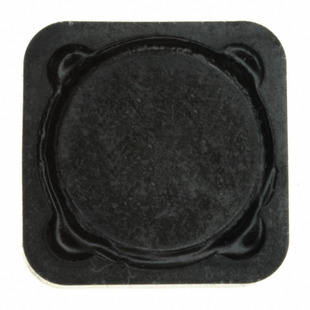

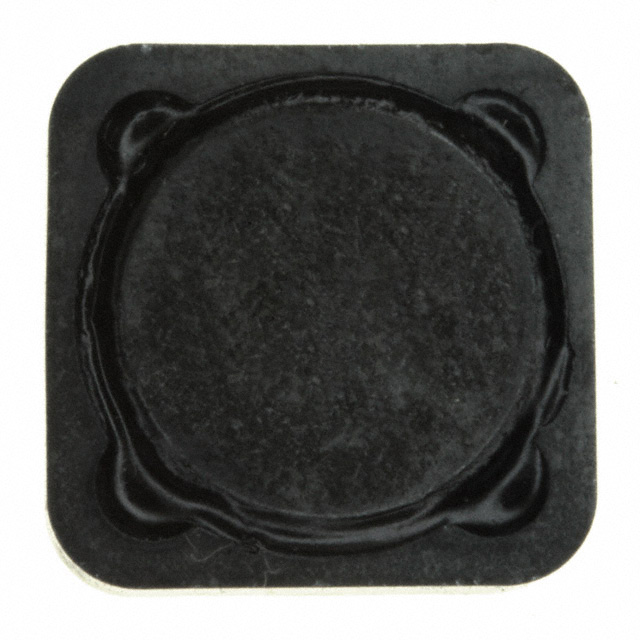

SPD127R-223M Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SPD127R-223M
Manufacturer/Brand: API Delevan
Product description FIXED IND 22UH 3.6A 55 MOHM SMD
Datasheets:
RoHs Status Lead free / RoHS Compliant
Stock Condition 20982 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 20982 pcs
Reference Price (In US Dollars)
1 pcs
$1.714
10 pcs
$1.571
100 pcs
$1.028
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$1.714

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SPD127R-223M

Part Number SPD127R-223M Manufacturer API Delevan
Description FIXED IND 22UH 3.6A 55 MOHM SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 20982 pcs Data sheet
Type Wirewound Tolerance ±20%
Supplier Device Package - Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Shielding Shielded Series SPD127R
Ratings - Q @ Freq -
Packaging Cut Tape (CT) Package / Case Nonstandard
Other Names DN7644-1
DN7644-1-ND
DN7644CT
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Core Ferrite Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance Frequency - Test 1kHz Inductance 22µH
Height - Seated (Max) 0.315" (8.00mm) Frequency - Self Resonant -
Detailed Description 22µH Shielded Wirewound Inductor 3.6A 55 mOhm Max Nonstandard DC Resistance (DCR) 55 mOhm Max
Current Rating 3.6A Current - Saturation 3.6A
