AVX Corporation

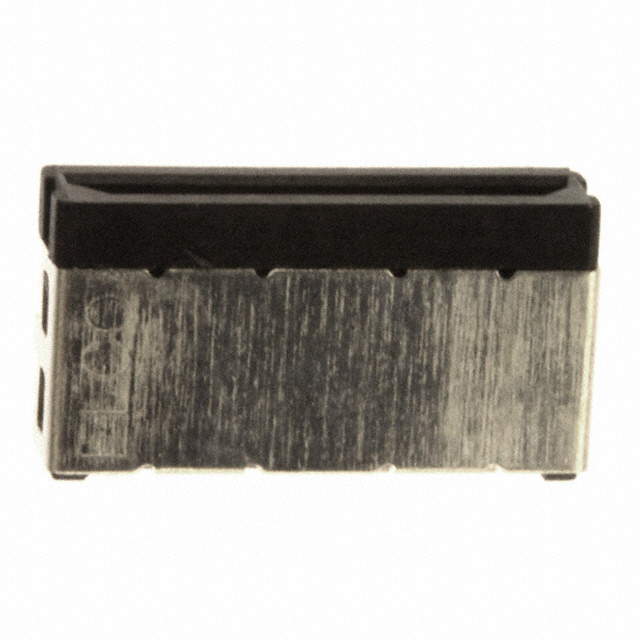

| Part Number | 209257016001013 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN RECEPTACLE 16 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36654 pcs | Data sheet | 209257016001013.pdf |
| Voltage Rating | 125VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | 9257 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Other Names | 209257016001013-ND 478-4514-2 |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.118" (3.00mm) | Insulation Color | - |
| Ingress Protection | - | Features | Board Guide, Shielded, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 16 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold |
| Current Rating | 1A per Contact | Contact Type | Female Blade Socket |
| Contact Shape | - | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose, Industrial, Medical, Telecommunications |
