533802B02500G

Aavid Thermalloy

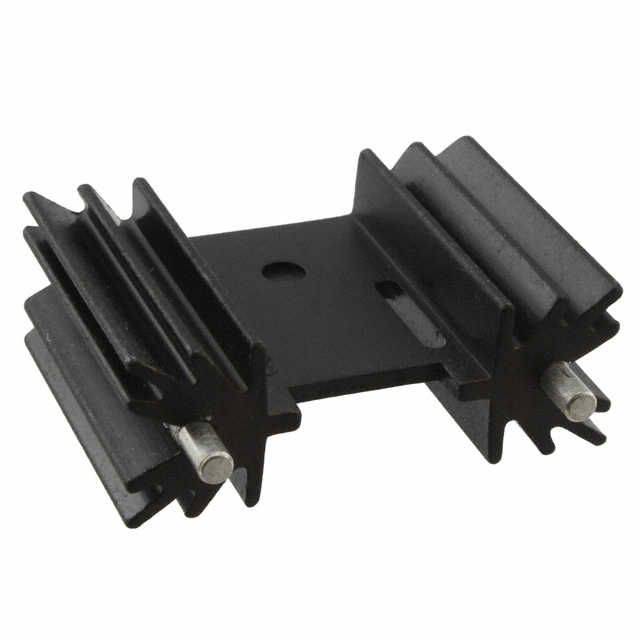

Image may be representation. See specifications for product details.

Product Overview

Part Number:	533802B02500G
Manufacturer/Brand:	Aavid Thermalloy
Product description	BOARD LEVEL HEAT SINK
Datasheets:	1.533802B02500G.pdf 2.533802B02500G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	54294 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 54294 pcs

Reference Price (In US Dollars)

1 pcs: $0.699

10 pcs: $0.663

25 pcs: $0.645

50 pcs: $0.628

100 pcs: $0.593

250 pcs: $0.558

500 pcs: $0.523

1000 pcs: $0.488

5000 pcs: $0.471

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.699

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 533802B02500G

Part Number	533802B02500G	Manufacturer	Aavid Thermalloy
Description	BOARD LEVEL HEAT SINK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54294 pcs	Data sheet	1.533802B02500G.pdf 2.533802B02500G.pdf
Width	1.375" (34.93mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	13.00°C/W	Thermal Resistance @ Forced Air Flow	4.00°C/W @ 700 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	3.0W @ 50°C	Package Cooled	TO-220
Other Names	041809	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Black Anodized	Material	Aluminum
Length	1.000" (25.40mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	0.500" (12.70mm)	Diameter	-
Detailed Description	Heat Sink TO-220 Aluminum 3.0W @ 50°C Board Level, Vertical	Attachment Method	PC Pin
