0022232161

Affinity Medical Technologies - a Molex company

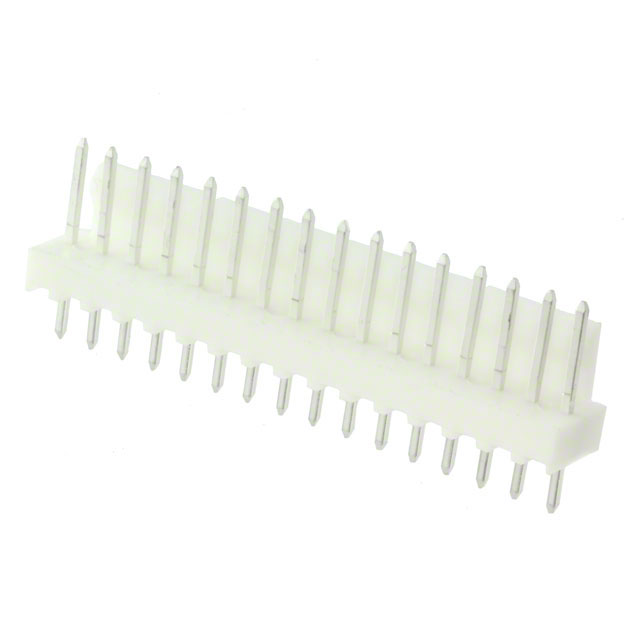

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022232161
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 16POS .100 VERT TIN
Datasheets:	1.0022232161.pdf 2.0022232161.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	46887 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 46887 pcs

Reference Price (In US Dollars)

1 pcs: $0.731

10 pcs: $0.663

100 pcs: $0.568

500 pcs: $0.473

1000 pcs: $0.406

5000 pcs: $0.36

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.731

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022232161

Part Number	0022232161	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 16POS .100 VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46887 pcs	Data sheet	1.0022232161.pdf 2.0022232161.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 6373	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.560" (14.22mm)	Other Names	002223-2161 02223-2161 22-23-2161 22-23-2161-ND 22-23-2161-P 2223-2161 A-6373-16A222 WM11186
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.322" (8.18mm)	Insulation Color	White
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 16 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.140" (3.56mm)	Contact Length - Mating	0.295" (7.49mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Telecommunications
