0022232201

Affinity Medical Technologies - a Molex company

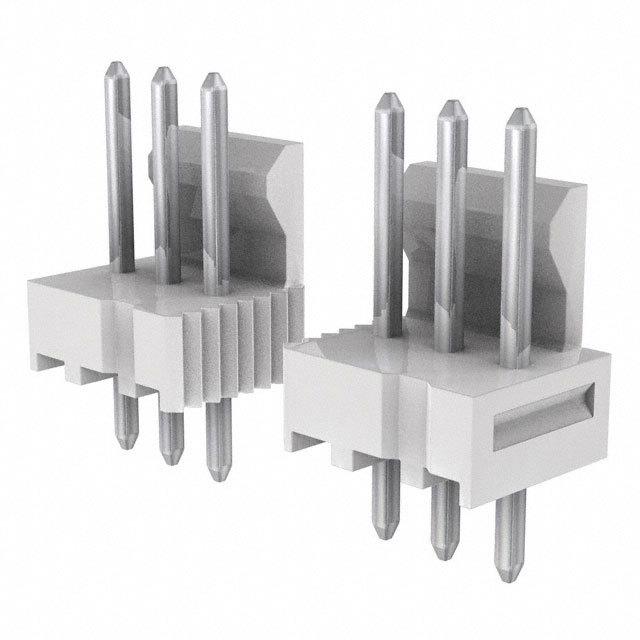

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022232201
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 100 HDR FRLK VERT 20POS TIN
Datasheets:	1.0022232201.pdf 2.0022232201.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31385 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31385 pcs

Reference Price (In US Dollars)

1 pcs: $0.931

10 pcs: $0.843

100 pcs: $0.723

500 pcs: $0.602

1000 pcs: $0.516

5000 pcs: $0.458

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.931

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022232201

Part Number	0022232201	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 100 HDR FRLK VERT 20POS TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31385 pcs	Data sheet	1.0022232201.pdf 2.0022232201.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 6373	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.560" (14.22mm)	Other Names	0022-23-2201 002223-2201 0022232201-ND 22-23-2201 22232201 A-6373-20A222 WM20974
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.322" (8.18mm)	Insulation Color	White
Ingress Protection	-	Features	-
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 20 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.140" (3.56mm)	Contact Length - Mating	0.295" (7.49mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Telecommunications
