0026192121

Affinity Medical Technologies - a Molex company

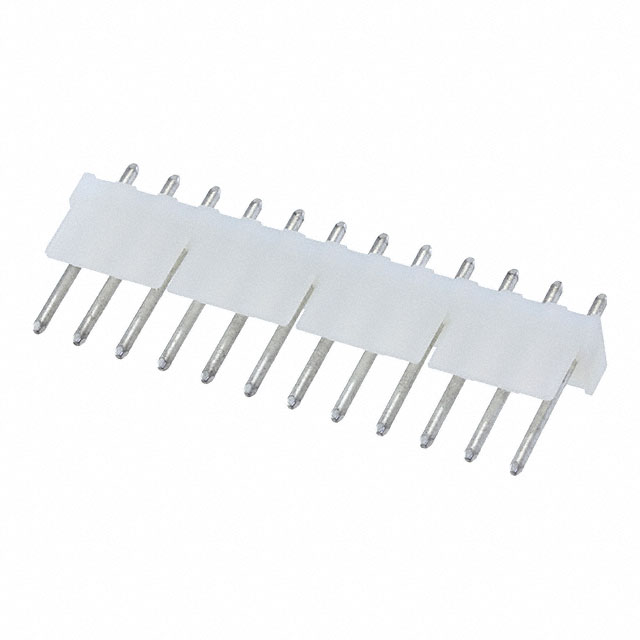

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0026192121
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	3.96MM KK HDR VT POL-W 12POS
Datasheets:	0026192121.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30331 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 30331 pcs

Reference Price (In US Dollars)

1 pcs: $1.089

10 pcs: $1.045

100 pcs: $0.871

500 pcs: $0.74

1000 pcs: $0.631

5000 pcs: $0.566

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.089

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0026192121

Part Number	0026192121	Manufacturer	Affinity Medical Technologies - a Molex company
Description	3.96MM KK HDR VT POL-W 12POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30331 pcs	Data sheet	0026192121.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 3190	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.750" (19.05mm)	Other Names	0026-19-2121 002619-2121 0026192121-ND 26-19-2121 26192121 3190-12A WM17056
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.359" (9.12mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 12 position 0.156" (3.96mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Brass
Contact Length - Post	0.175" (4.45mm)	Contact Length - Mating	0.450" (11.43mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
