0194370029

Affinity Medical Technologies - a Molex company

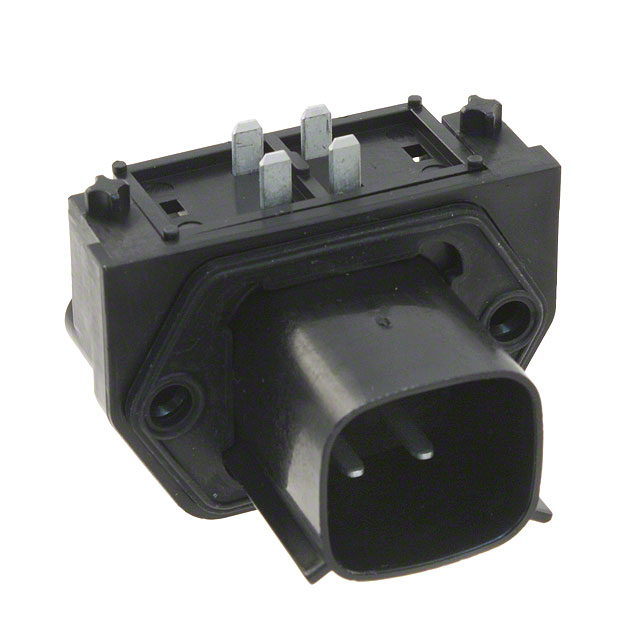

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0194370029
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MX150L 4WAY RA PCB HRD ASSY
Datasheets:	1.0194370029.pdf 2.0194370029.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8369 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 8369 pcs

Reference Price (In US Dollars)

1 pcs: $3.916

10 pcs: $3.561

25 pcs: $3.472

50 pcs: $3.205

100 pcs: $3.027

320 pcs: $2.76

640 pcs: $2.582

1280 pcs: $2.368

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.916

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0194370029

Part Number	0194370029	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MX150L 4WAY RA PCB HRD ASSY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8369 pcs	Data sheet	1.0194370029.pdf 2.0194370029.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX150L 19437	Row Spacing - Mating	0.300" (7.62mm)
Pitch - Mating	0.300" (7.62mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	019437-0029 19437-0029 194370029 WM4520
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Panel Mount, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	1.350" (34.30mm)	Insulation Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	Board Guide, Mounting Flange
Fastening Type	Latch Lock	Detailed Description	Connector Header Panel Mount, Through Hole, Right Angle 4 position 0.300" (7.62mm)
Current Rating	-	Contact Type	Tab
Contact Shape	Rectangular	Contact Material	Copper Alloy
Contact Length - Post	0.150" (3.81mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial
