0527931470

Affinity Medical Technologies - a Molex company

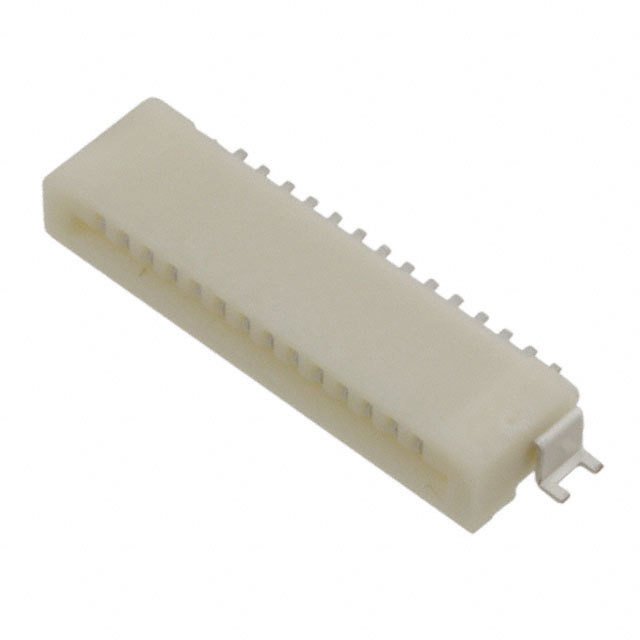

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0527931470
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC TOP 14POS 1.00MM R/A
Datasheets:	0527931470.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	80133 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 80133 pcs

Reference Price (In US Dollars)

1 pcs: $0.432

10 pcs: $0.381

25 pcs: $0.359

50 pcs: $0.344

100 pcs: $0.329

250 pcs: $0.299

500 pcs: $0.269

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.432

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0527931470

Part Number	0527931470	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC TOP 14POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80133 pcs	Data sheet	0527931470.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 52793	Pitch	0.039" (1.00mm)
Packaging	Original-Reel®	Other Names	WM3389DKR
Operating Temperature	-20°C ~ 85°C	Number of Positions	14
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Locking Feature	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyphenylene Sulfide (PPS)	Housing Color	-
Height Above Board	0.122" (3.10mm)	Flat Flex Type	FPC
Features	Solder Retention	FFC, FCB Thickness	0.30mm
Detailed Description	14 Position FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle	Current Rating	0.5A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Tin Bismuth	Connector/Contact Type	Contacts, Top
Cable End Type	Straight	Actuator Material	-
Actuator Color	-
