0528520970

Affinity Medical Technologies - a Molex company

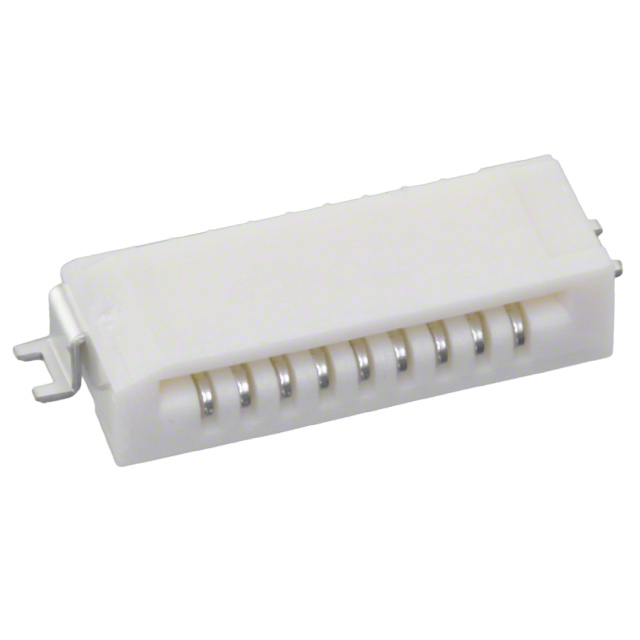

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0528520970
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 9POS 1.00MM R/A
Datasheets:	0528520970.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	211928 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 211928 pcs

Reference Price (In US Dollars)

1000 pcs: $0.16

2000 pcs: $0.15

3000 pcs: $0.145

5000 pcs: $0.14

10000 pcs: $0.133

25000 pcs: $0.13

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.16

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0528520970

Part Number	0528520970	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 9POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	211928 pcs	Data sheet	0528520970.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 52852	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	052852-0970 0528520970-ND 52852-0970 528520970 WM11075TR
Operating Temperature	-20°C ~ 80°C	Number of Positions	9
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Locking Feature	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyphenylene Sulfide (PPS)	Housing Color	-
Height Above Board	0.122" (3.10mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention	FFC, FCB Thickness	0.30mm
Detailed Description	9 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle	Current Rating	0.5A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Tin Bismuth	Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight	Actuator Material	-
Actuator Color	-
