0530470910

Affinity Medical Technologies - a Molex company

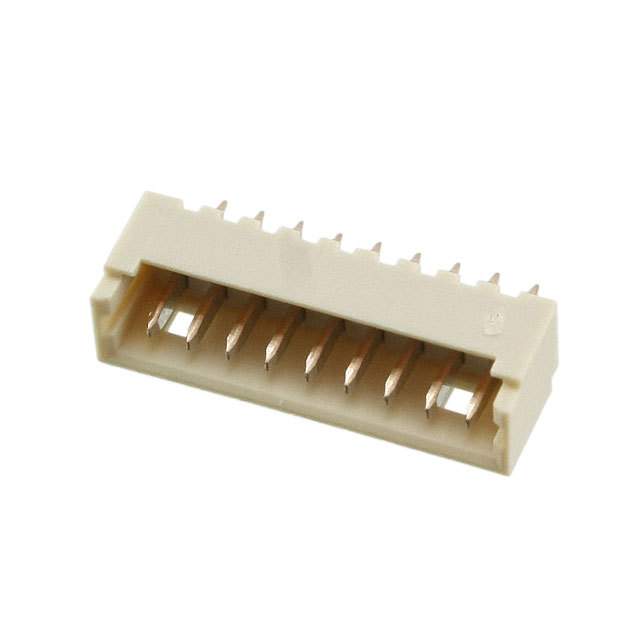

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0530470910
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 9POS 1.25MM VERT TIN
Datasheets:	0530470910.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	119283 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 119283 pcs

Reference Price (In US Dollars)

1 pcs: $0.27

10 pcs: $0.236

100 pcs: $0.204

500 pcs: $0.167

2000 pcs: $0.139

6000 pcs: $0.13

10000 pcs: $0.123

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.27

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0530470910

Part Number	0530470910	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 9POS 1.25MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	119283 pcs	Data sheet	0530470910.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PicoBlade 53047	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tray
Overall Contact Length	-	Other Names	530-47-0910-P 53047-0910 53047-0910-C 53047-0910-CL100 530470910 WM1738
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.165" (4.20mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole 9 position 0.049" (1.25mm)
Current Rating	-	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	Phosphor Bronze
Contact Length - Post	0.091" (2.30mm)	Contact Length - Mating	0.089" (2.25mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	35.4µin (0.90µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	Automotive, General Purpose, Industrial, Medical
