0545501071

Affinity Medical Technologies - a Molex company

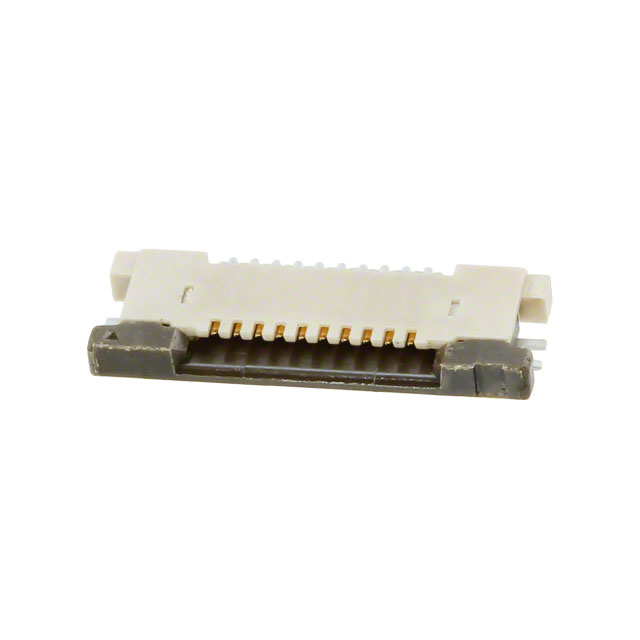

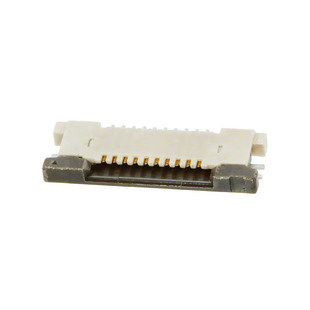

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0545501071
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC TOP 10POS 0.50MM R/A
Datasheets:	0545501071.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	122933 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 122933 pcs

Reference Price (In US Dollars)

3000 pcs: $0.261

6000 pcs: $0.248

9000 pcs: $0.243

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.261

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0545501071

Part Number	0545501071	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC TOP 10POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	122933 pcs	Data sheet	0545501071.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54550	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	054550-1071 54550-1071 545501071 WM6790TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	10
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP)	Housing Color	-
Height Above Board	0.047" (1.20mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.30mm
Detailed Description	10 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle	Current Rating	0.5A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Gold	Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered	Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Color	-
