0681512025

Affinity Medical Technologies - a Molex company

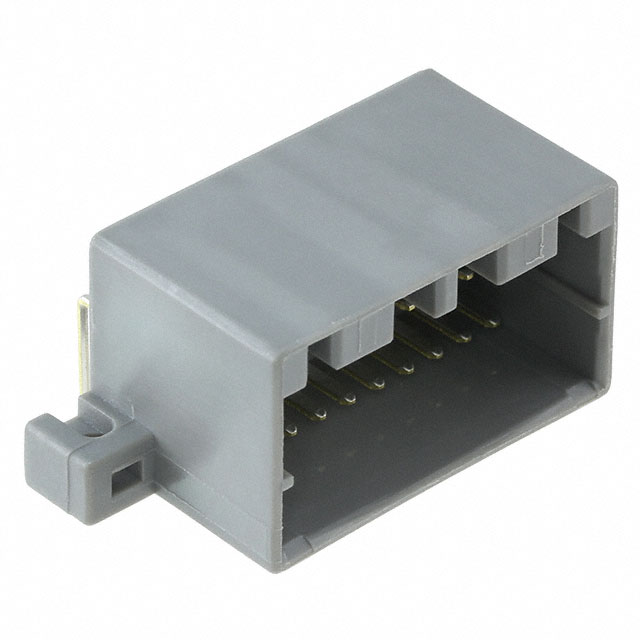

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0681512025
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	040 W/B 20P HEAD ASSY HZT
Datasheets:	0681512025.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23044 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23044 pcs

Reference Price (In US Dollars)

1 pcs: $1.661

10 pcs: $1.593

100 pcs: $1.328

720 pcs: $1.129

1440 pcs: $0.963

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.661

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0681512025

Part Number	0681512025	Manufacturer	Affinity Medical Technologies - a Molex company
Description	040 W/B 20P HEAD ASSY HZT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23044 pcs	Data sheet	0681512025.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	68151	Row Spacing - Mating	0.205" (5.20mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	068151-2025 0681512025-ND 68151-2025 681512025 WM14672
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 HB	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.665" (16.90mm)	Insulation Color	Gray
Ingress Protection	-	Features	Mounting Flange
Fastening Type	Latch Lock	Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.098" (2.50mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.157" (4.00mm)	Contact Length - Mating	0.276" (7.00mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
