0757571161

Affinity Medical Technologies - a Molex company

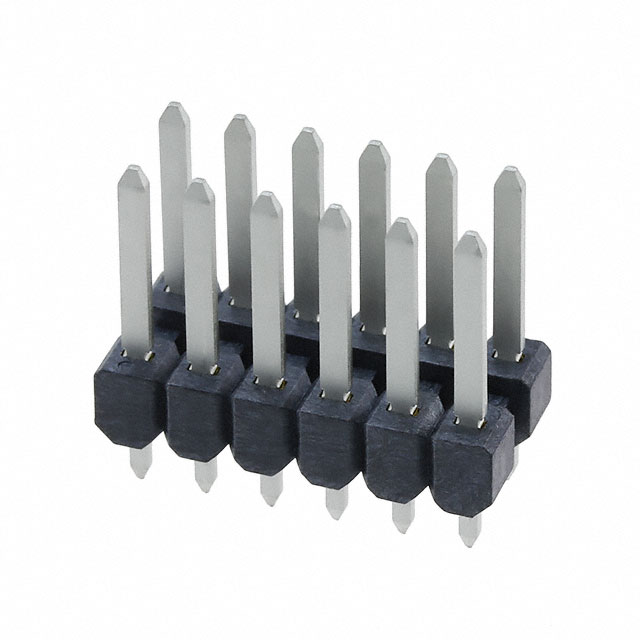

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0757571161
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2X6 VERT BRKWAY TIN
Datasheets:	0757571161.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44922 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44922 pcs

Reference Price (In US Dollars)

1 pcs: $0.702

10 pcs: $0.637

350 pcs: $0.494

700 pcs: $0.455

1050 pcs: $0.39

5250 pcs: $0.346

10150 pcs: $0.338

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.702

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0757571161

Part Number	0757571161	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2X6 VERT BRKWAY TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44922 pcs	Data sheet	0757571161.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Unshrouded
Series	MX150 75757	Row Spacing - Mating	0.236" (6.00mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Tube
Overall Contact Length	0.738" (18.75mm)	Other Names	0757571161-ND 75757-1161 757571161 WM12842
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.177" (4.50mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 12 position 0.138" (3.50mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Cartridge Brass
Contact Length - Post	0.120" (3.05mm)	Contact Length - Mating	0.441" (11.20mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header, Breakaway	Applications	Automotive
