09-48-3026

Affinity Medical Technologies - a Molex company

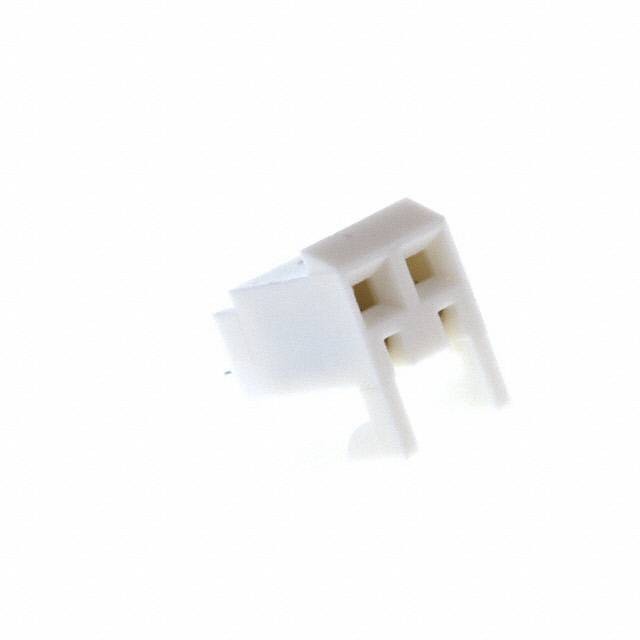

Image may be representation. See specifications for product details.

Product Overview

Part Number:	09-48-3026
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 2POS .156 VERT PCB
Datasheets:	09-48-3026.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	187956 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 187956 pcs

Reference Price (In US Dollars)

1 pcs: $0.158

10 pcs: $0.149

100 pcs: $0.104

500 pcs: $0.089

1000 pcs: $0.074

5000 pcs: $0.064

10000 pcs: $0.059

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.158

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 09-48-3026

Part Number	09-48-3026	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 2POS .156 VERT PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	187956 pcs	Data sheet	09-48-3026.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Series	KK 41815
Row Spacing - Mating	-	Pitch - Mating	0.156" (3.96mm)
Packaging	Tray	Other Names	0009-48-3026 0009-48-3026-E 0009483026 0009483026-E 09-48-3026-E 09483026 09483026-E 9483026 A-41815-0467 WM13542
Operating Temperature	-40°C ~ 80°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester
Insulation Height	0.449" (11.40mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Hooks
Fastening Type	Locking Ramp	Detailed Description	2 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold
Current Rating	4.5A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.120" (3.05mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	Automotive, General Purpose, Medical, Telecommunications
